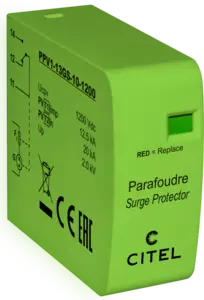

Type 1+2 PV Surge Protector for PCB mounting

PPV1-13GS-1200

Part Number 8724608

Select another reference:

Electrical Properties Mechanical Properties Norms Deconnector Schematics

SPD type	IEC	1+2
Max. PV operating voltage	Ucpv	1200 Vdc
PV Permanent Operating current Current consumption at Ucpv	Icpv	< 0.1 mA
Nominal discharge current 15 x 8/20 µs impulses	In	20 kA
Impulse current by pole max. withstand 10/350µs by pole	Iimp	12.5 kA
Current withstand short circuit PV	Iscpv	15 000 A
Protection level @ In (8/20µs)	Up	2 kV
Protection level (star mounting) (+/-) / (+/PE or -/PE) @ In (8/20µs)	Up	4 kV

Technology		Gas discharge tube
Connection to Network		Through soldering pins
Mounting		On Printed Circuit Board
Housing material		Thermoplastic UL94 V-0
Operating temperature	Tu	-40/+85°C
Protection rating		IP20
Disconnection indicator		Mechanical indicator
Remote signaling of disconnection		Output on changeover contact
Dimensions		See diagram
Weight		0.033 kg

Standards compliance

IEC 61643-31 / EN 50539-11 *The standard cover devices. PPV/PAC series are components. Compliant when combined is an assembly.

Thermal disconnector		Internal
Back-up protection device		Without

Description: Type 1+2 PV Surge Protector for PCB mounting
Standards compliance: IEC 61643-31 / EN 50539-11 *The standard cover devices. PPV/PAC series are components. Compliant when combined is an assembly.
Technology: Gas discharge tube
Remote signaling of disconnection: Output on changeover contact
SPD type : 1+2
Max. PV operating voltage: 1200 Vdc
Impulse current by pole : 12.5 kA
Protection level : 2 kV
