Surge protector for LED lighting system Class 1

MLPM1-230L-R
Part Number 841211
MLPM1-230L-R
  • Type 2 (or 3) surge protectors for LED
  • For single phase 230 V network
  • Class 1
  • Very compact
  • Plate mounting
  • Spring terminal connection
  • Status indicator
  • End of life : AC Disconnection
  • EN 61643-11, IEC 61643-11 certified

The MLPM range is a series of AC surge protectors dedicated to LED lighting system. The MLPM are very compact to be integrated into luminaires by spring connexion terminal. This range is equipped with a mechanical disconnect indicator exclusive to CITEL.

Select another reference:

SPD type
IEC

2+3

Network

220-240 V Single-phase

AC system

TT-TN

Max. AC operating voltage
Uc

275 Vac

Max. load current @25°C
IL

10 A

Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT

335 Vac withstand

Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT

440 Vac disconnection

Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
UT

1200 V/300A/200 ms disconnection

Residual Current
Leakage current to Ground
Ipe

None

Nominal discharge current
15 x 8/20 µs impulses
In

5 kA

Max. discharge current
max. withstand @ 8/20 µs by pole
Imax

10 kA

Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total

20 kA

Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
Uoc

12 kV

Protection mode(s)

Common/Differential mode

Protection level L/N
@ In (8/20µs)
Up L/N

1.2 kV

Protection level L/PE
@ In (8/20µs)
Up L/PE

1.5 kV

Admissible short-circuit current
Isccr

10 000 A

Technology

MOV+GDT

Connection to Network

2 spring terminals opposite side in/out - wire 1.5mm² max.

Mounting

On plate

Housing material

Thermoplastic UL94 V-0

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Failsafe mode

Disconnection and AC line cut-off

Disconnection indicator

Red indicator

Operating indicator

Mechanical

Dimensions

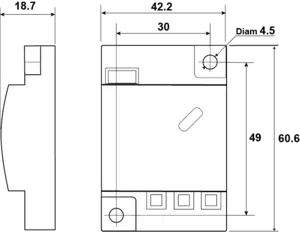

See diagram

Weight

0.027 kg

Standards compliance

EN 61643-11 / IEC 61643-11

Certification

KEMA / ENEC05

Thermal disconnector

Internal

Installation ground fault breaker

Type 'S' or delayed
