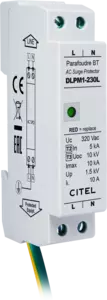

Surge protector for LED lighting system Class 1

DLPM1-230L/CM8
Part Number 3559131
DLPM1-230L/CM8
  • Type 2 (or 3) surge protectors for LED
  • For single-phase or biphase network
  • Very compact (low profile)
  • DIN rail mounting
  • Screw terminal connection
  • Mechanical status indicator
  • Disconnection AC end of life
  • EN 61643-11 compliance
Contact Us
The DLPM range is a series of DIN-mount AC surge protector designed to be installed inside the cutouts: his compact size and lower height make it compatible with the DIN rail mounting of its enclosures. This range has a mechanical disconnect indicator.
Select another reference:
SPD type
2 (or 3)
Network
 220-240 V Single-phase
AC system
 TT-TN
Nominal line voltage
 Un 230-277 Vac
Max. AC operating voltage
Uc 320 Vac
Max. load current
@25°C
 IL 10 A
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT 335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT 440 Vac disconnection
Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
 UT 1200 V/300A/200 ms disconnection
Residual Current
Leakage current to Ground
 Ipe None
Operating current
Continious current at Uc
 Ic None
Nominal discharge current
15 x 8/20 µs impulses
 In 5 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 10 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total 20 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
 Uoc 10 kV / 5 kA
Withstand on overvoltages IEEE C62.41.1
 10 kV / 10 kA
Protection mode(s)
 Common/Differential mode
Protection level L/N
@ In (8/20µs)
 Up L/N 1.5 kV
Protection level L/PE
@ In (8/20µs)
 Up L/PE 1.5 kV
Admissible short-circuit current
 Isccr 10 000 A
Technology
 MOV+GDT
Connection to Network
 Screw terminal 2.5mm² max. Earthing conductor 2 mm² - length 60cm
Mounting
 Symmetrical rail 35 mm (EN 60715)
Accessory(s) provided
 screw, washer, cable shoe
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Failsafe mode
 Disconnection from AC network
Disconnection indicator
 1 mechanical indicator
Voltage/operating indicator
 Green Indicator
Remote signaling of disconnection
 No
Dimensions
 See diagram
Standards compliance
 EN 61643-11 / IEC 61643-11
Certification
 CB
Thermal disconnector
 Internal
Installation ground fault breaker
 Type 'S' or delayed
