LED
DIN rail LED surge protection
DACN10S-L11-275

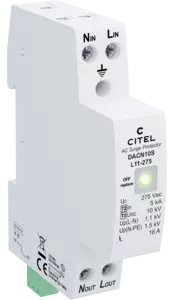

Compact single-phase type 2 (or 3) surge protector - Monobloc
DACN10S-L11-275
Part Number
70112022
Cost effective single-phase surge protector
Type 2+3 monobloc compact
In/Imax: 5 kA/10 kA
Max. load current: 16A
Disconnection + AC line cut
2-port configuration (series mounting)
Remote signaling
EN 61643-11, IEC 61643-11 compliance
Datasheet
Installation Sheet
Tender specifications
Contact Us
DACN10S-L AC surge protector is used for the 'secondary' protection of the single-phase networks against the surge voltages creating by lightning. Unlike the DACN10S, the DACN10S-L incorporates an in-line safety disconnection and double output connection. The DACN10S-L provides common and differential mode protection and features an LED colour change from green to red at end of life. The DACN10S-L surge protector series is a single module DINRail mounted device designed to be installed close to the equipment being protected; it will normally be connected ‘downstream’ of a Type 1/2 'primary' surge protector.
Select another reference:
DACN10-L21YG-275
DACN10S-L11-150
DACN10S-L11-275
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
2+3
Network
230 V single-phase
AC system
TT-TN
Max. AC operating voltage
Uc
275 Vac
Max. load current
@25°C
IL
16 A
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT
335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT
440 Vac disconnection
Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
UT
1200 V/300A/200 ms breaker disconnection
Residual Current
Leakage current to Ground
Ipe
None
Nominal discharge current
15 x 8/20 µs impulses
In
5 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax
10 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
Uoc
10 kV
Protection level L/N
@ In (8/20µs)
Up L/N
1.1 kV
Protection level N/PE
@ In (8/20µs)
Up N/PE
1.5 kV
Admissible short-circuit current
Isccr
10 000 A
SPD configuration
Single phase
Connection to Network
By screw terminals: 1.5-10mm²
Plugable
No
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Outdoor application
No
Failsafe mode
Disconnection and AC line cut-off
Disconnection indicator
Green LED OFF
Remote signaling of disconnection
Output on changeover contact
Wiring for remote signaling
1.5 mm² max.
Max. Voltage/Current for remote signaling
250 V / 0.5 A (AC) / 30 V / 2 A (DC)
Dimensions
See diagram - 1TE (EN43880)
Weight
0.092 kg
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Back-up protection device
Fuses type gG - 25A
×
Description:
Compact single-phase type 2 (or 3) surge protector - Monobloc
Standards compliance:
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
SPD configuration:
Single phase
Remote signaling of disconnection:
Output on changeover contact
SPD type :
2+3
Network:
230 V single-phase
AC system:
TT-TN
Max. AC operating voltage :
275 Vac
Residual Current :
None
Max. discharge current :
10 kA
Admissible short-circuit current:
10 000 A
