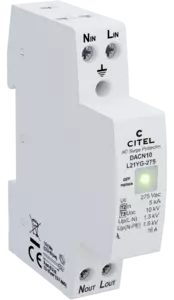

Compact single-phase type 2 (or 3) surge protector - Monobloc

DACN10-L21YG-275
Part Number 70115021
DACN10-L21YG-275
  • Cost effective single-phase surge protector
  • Type 2+3 monobloc compact
  • In/Imax: 5 kA/10 kA
  • Max. load current: 16A
  • Disconnection + AC line cut
  • 2-port configuration (series mounting)
  • Remote signaling
  • EN 61643-11, IEC 61643-11 compliance

DACN10S-L AC surge protector is used for the 'secondary' protection of the single-phase networks against the surge voltages creating by lightning. Unlike the DACN10S, the DACN10S-L incorporates an in-line safety disconnection and double output connection. The DACN10S-L provides common and differential mode protection and features an LED colour change from green to red at end of life. The DACN10S-L surge protector series is a single module DINRail mounted device designed to be installed close to the equipment being protected; it will normally be connected ‘downstream’ of a Type 1/2 'primary' surge protector.


SPD type
IEC

2+3

Network

230 V single-phase

AC system

TN

Max. AC operating voltage
Uc

275 Vac

Max. load current @25°C
IL

16 A

Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT

335 Vac withstand

Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT

440 Vac disconnection

Residual Current
Leakage current to Ground
Ipe

None

Nominal discharge current
15 x 8/20 µs impulses
In

5 kA

Max. discharge current
max. withstand @ 8/20 µs by pole
Imax

10 kA

Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
Uoc

10 kV

Protection level L/N
@ In (8/20µs)
Up L/N

1.3 kV

Protection level N/PE
@ In (8/20µs)
Up N/PE

1.6 kV

Protection level L/PE
@ In (8/20µs)
Up L/PE

1.6 kV

Admissible short-circuit current
Isccr

10 000 A

SPD configuration

Single phase

Connection to Network

By screw terminals: 1.5-10mm²

Plugable

No

Mounting

Symmetrical rail 35 mm (EN 60715)

Housing material

Thermoplastic UL94 V-0

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Outdoor application

No

Failsafe mode

Disconnection and AC line cut-off

Disconnection indicator

Green LED OFF

Remote signaling of disconnection

option DACN10S-L21YG-275

Dimensions

See diagram - 1TE (EN43880)

Weight

0.086 kg

Standards compliance

IEC 61643-11 / EN 61643-11 / UL1449 ed.5

Thermal disconnector

Internal

Installation ground fault breaker

Type 'S' or delayed

Back-up protection device

Fuses type gG - 25A
