Coaxial surge protector for video transmission networks

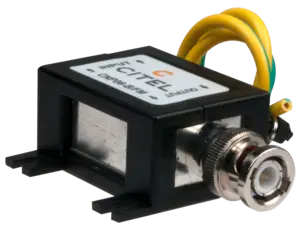

CNP06 B/FM
CNP06 B/FM
Part Number: 64270
  • Coaxial surge protector
  • Multiples connectors
  • Low insertion loss
  • Easy installation$
Installation Sheet

CNP surge protectors are designed to protect sensitive equipment, connected to coaxial lines as computer networks, video-transmission, against transient surge voltages and disturbances created by lightning.


Select another reference:

Network
coaxial DC-100 MHz
Nominal line voltage
5 V
Max. DC operating voltage
10 V
Max. load current
0.5 A
Max. frequency
DC-100 MHz
Insertion loss
≤ 0.5 dB
Operating current
Continious current at Uc
None
Max. discharge current
max. withstand @ 8/20 µs by pole
20 kA
Protection mode(s)
Common mode
Protection level
Following the test category C3 (IEC61643-21) - Line/Line
20 V
Protection level L/N
@ In (8/20µs)
20 V
Protection level L/PE
@ In (8/20µs)
20 V
Impulse current
2 x 10/350µs Test - D1 Category
2.5 kA
Nominal discharge current
8/20µs Test x 10 - C2 Category
5 kA
Impedance
50/75 ohms
Max Power
4 W
Return loss
≥20 dB
VSWR
< 1.3:1
DC Pass False
Technology GDT + Diode
Connection to Network BNC connector female/male
Format
Insulating box
Mounting
On plate
Housing material Metal+plastic
Operating temperature -40/+85°C
Protection rating IP20
Outdoor application
False
Failsafe behavior Short-circuit
Disconnection indicator Transmission interrupt
Dimensions
See diagram
Standards compliance
IEC 61643-21 / EN 61643-21 / UL497C / UL497E
