19'' patch panel surge protector for high speed network STP

Part Number: 581515
PL24-CAT6
PL24-CAT6
PL24-CAT6
PL24-CAT6
PL24-CAT6
  • Surge protector for CAT6
  • 24 ports
  • 19'' patch panel 1 U
  • 100/1000/10Gigabit Ethernet network compliance
  • Connectors RJ45 shielded
  • Bi-directionnel

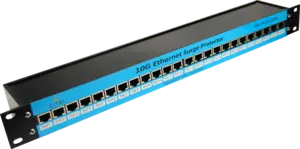

The PLx-CAT6 are surge protection devices in 19" format and offer protection against lightning and surge voltages for sensitive interfaces connected in a Gigabit Ethernet network. The protection circuit consists of a highly efficient combination of 3-pole gas arresters and low-capacitance diodes. The protection components are connected via standard RJ45 plugs. Up to 24 ports can be protected with the PL24-CAT6. The 19'' format allows easy installation in all standard 19'' cabinets.
Select another reference:
PL24-CAT6

Network

10 Gigabit Ethernet, Cat.6 cabling
Nominal line voltage
 Un

5 Vdc
Max. DC operating voltage
 Uc

8 Vdc
Max. frequency
 f max.

250 MHz
Max. data rate

10/100/1000 Mbps
Insertion loss

< 1 dB
Max. load current @25°C
 IL

1000 mA
Nominal Discharge Current, X-C (Line/Earth)
8/20µs Test x 10 - C2 Category
 In L/PE

2000 A
Protection Level
C3 (10/1000μs), 300 applications@10 A, Y-Y (Line/Line)
 Up

20 V
Protection Level
C3 (10/1000μs), 300 applications@10 A, Y-C (Line/Earth)
 Up

20 V
Max. capacitance
 C

< 25 pF
Impulse current
2 x 10/350µs Test - D1 Category
 Iimp

500 A
Line/Line Nominal discharge current
C2 Category
In L/L

500 A

Technology

GDT+TVS diode
SPD configuration

24 ports de 8 wires
Connection to Network

RJ45 shielded female input/output
Format

Rack 19''
Mounting

Baie 19''
Housing material

Aluminium
Operating temperature
 Tu

-40/+85°C
Protection rating

IP20
Outdoor application

No
Failsafe mode

Short-circuit
Disconnection indicator

Transmision interrupt
Spare module(s)

12-port PCB
Remote signaling of disconnection

No
Pinout

(1-2)(3-6)(4-5)(7-8)
Dimensions

See diagram

Standards compliance

IEC 61643-21 / EN 61643-21 / UL497 B / IEEE 802-3an
