19'' patch panel surge protector for high speed network STP

PL12-CAT6
Part Number: 581534
  • Surge protector for CAT6
  • 12 ports
  • 19'' patch panel 1 U
  • 100/1000/10Gigabit Ethernet network compliance
  • Connectors RJ45 shielded
  • Bi-directionnel
Contact Us

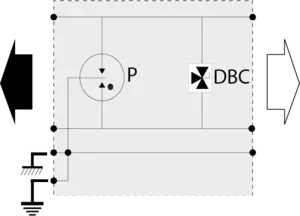

The PLx-CAT6 are surge protection devices in 19" format and offer protection against lightning and surge voltages for sensitive interfaces connected in a Gigabit Ethernet network. The protection circuit consists of a highly efficient combination of 3-pole gas arresters and low-capacitance diodes. The protection components are connected via standard RJ45 plugs. Up to 24 ports can be protected with the PL24-CAT6. The 19'' format allows easy installation in all standard 19'' cabinets.
Select another reference:
Network
 10 Gigabit Ethernet, Cat.6 cabling
Nominal line voltage
 Un 5 Vdc
Max. DC operating voltage
 Uc 8 Vdc
Max. frequency
 f max. 250 MHz
Max. data rate
 10/100/1000 Mbps
Insertion loss
 < 1 dB
Max. load current
 IL 1000 mA
Protection level
Following the test category C3 (IEC61643-21) - Line/Line
 Up 20 V
Max. capacitance
 C < 25 pF
Impulse current
2 x 10/350µs Test - D1 Category
 Iimp 500 A
Line/Line Nominal discharge current
C2 Category
In L/L 500 A
Line/Ground Nominal discharge current
8/20µs Test x 10 - C2 Category
 In L/PE 2000 A
Technology
 GDT+Clamping diode
SPD configuration
 12 ports de 8 wires
Connection to Network
 RJ45 shielded female input/output
Format
 Rack 19''
Mounting
 Baie 19''
Housing material
 Aluminium
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Outdoor application
 No
Failsafe mode
 Short-circuit
Disconnection indicator
 Transmission interrupt
Spare module(s)
 12-port PCB
Remote signaling of disconnection
 No
Pinout
 (1-2)(3-6)(4-5)(7-8)
Dimensions
 See diagram
Standards compliance
 IEC 61643-21 / EN 61643-21 / UL497 B / IEEE 802-3an
