19'' patch panel CAT6 surge protector for Data-Telecom lines

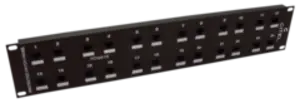

PCH12-C6
Part Number 6249
PCH12-C6
  • 19'' patch panel CAT6 surge protector
  • 12 ports
  • In : connecor type 110 back
  • Out : RJ45 front
  • Maintenance possible per port
  • Secondary protection
  • UL497B
Contact Us
The PCH series protects 12, 24 and 48 ports, 19''rack mounted protection units that feature 110 punchdow to RJ45 connectors. This series feature CAT6 perfomance for todays's high speed data networks. These products are also available in configurations that offer surge protection to Telco and ISDN circuits.
Network
 100/1000/10G BaseT, RS422, RS485, RS423, Ethernet
Nominal line voltage
 Un 5 Vdc
Max. DC operating voltage
 Uc 7.5 Vdc
Max. frequency
 f max. 250 MHz
Max. data rate
 10 Gbps
Insertion loss
 < 1 dB
Max. load current
@25°C
 IL 750 mA
Protection level
@ In (8/20 µs)
 Up L/L 20 V
Max. capacitance
 C < 8 pF
Discharge current
at 10/1000µs impulse current
 100 A
Line/Line Nominal discharge current
C2 Category
In L/L 500 A
Nominal Discharge Current, X-C (Line/Earth)
8/20µs Test x 10 - C2 Category
 In L/PE 500 A
Technology
 Diode écrêtage
SPD configuration
 12 ports de 8 wires
Connection to Network
 Self-stripping connector 110 back/RJ45 Female. front
Format
 Rack 19''
Mounting
 Baie 19''
Housing material
 Aluminium
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Outdoor application
 No
Failsafe mode
 Short-circuit
Disconnection indicator
 Transmission interrupt
Spare module(s)
 removable circuit 2 ports
Remote signaling of disconnection
 No
Pinout
 (1-2)(3-6)(4-5)(7-8)
Dimensions
 See diagram
Weight
 0.3 kg
Standards compliance
 IEC 61643-21 / EN 61643-21 / UL497B / IEEE 802-3an
