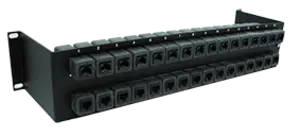

19'' patch panel surge protector for high-speed network

RAK32-E-C6-SO
Part Number 6257
RAK32-E-C6-SO
  • 19'' patch panel surge protector for CAT6
  • 32 ports
  • In/Out front : RJ45
  • Maintenance possible per port
  • Secondary protection
  • UL497B
Contact Us
The RAK series of rack mount and wall mount standoff protectors will ensure the reliable operation of networked equipment connected to 10/100/1000BaseT Ethernet, Cat5, Cat6, PoE and most other communication interfaces.
Network
 100/1000/10G BaseT, RS422, RS485, RS423, Ethernet
Nominal line voltage
 Un 5 Vdc
Max. DC operating voltage
 Uc 7.5 Vdc
Max. frequency
 f max. 250 MHz
Max. data rate
 10 Gbps
Insertion loss
 < 1 dB
Max. load current
@25°C
 IL 750 mA
Protection level
@ In (8/20 µs)
 Up L/L 20 V
Max. capacitance
 C < 8 pF
Discharge current
at 10/1000µs impulse current
 100 A
Line/Line Nominal discharge current
C2 Category
In L/L 500 A
Nominal Discharge Current, X-C (Line/Earth)
8/20µs Test x 10 - C2 Category
 In L/PE 500 A
Technology
 Diode écrêtage
SPD configuration
 32 ports of 8 wires
Connection to Network
 RJ45 Female intput/output
Format
 Rack 19''
Mounting
 19'' rack or wall
Housing material
 Aluminium
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Outdoor application
 No
Failsafe mode
 Short-circuit
Disconnection indicator
 Transmission interrupt
Spare module(s)
 1-port removable circuit
Remote signaling of disconnection
 No
Pinout
 (1-2)(3-6)(4-5)(7-8)
Dimensions
 See diagram
Weight
 0.1 kg
Standards compliance
 IEC 61643-21 / EN 61643-21 / UL497B / IEEE 802-3an
