Type 2 AC surge protector
DS440-230/G

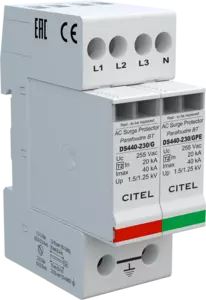

Compact 3-phase+N Type 2 surge protector - 230/400 V - Pluggable
DS440-230/G
Part Number:
311722
Compact 3-Phase Type 2 surge protector
In : 20 kA
Imax : 40 kA
Common/Differential mode
Pluggable module
Remode Signaling contact option
EN 61643-11, IEC 61643-11, UL1449 ed.4 compliance
Installation Sheet
Contact Us
The DS440 Type 2 surge protectors are compact devices designed to protect 3-phase+N networks at the main switchboard. They provide a common or common/differential mode protection. This SPD is based on high energy varistor equipped with thermal disconnectors and failure indicator to comply with standards. The DS440 is DIN rail compatible and is built with a plug-in module and fixed base, which allows an easy and fast maintenance.
Select another reference:
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
2
Network
230/400 V 3-phase
AC system
TT-TN
Nominal line voltage
Un
230 Vac
Max. AC operating voltage
Uc
255 Vac
Temporary Over Voltage (TOV) Charasteristics - 5 sec.
UT
335 Vac withstand
Temporary Over Voltage (TOV) Charasteristics - 120 mn
UT
440 Vac disconnection
Temporary Over Voltage N/PE (TOV HT)
UT
1200 V/300A/200 ms withstand
Residual Current
Ipe
None
Operating current
Ic
0.5 mA
Follow current
If
None
Nominal discharge current
In
20 kA
Max. discharge current
Imax
40 kA
Total Maximum discharge current
Imax Total
40 kA
Connection mode(s)
L/N and N/PE
Protection mode(s)
Common/Differential mode
Residuel voltage at 5 kA
Up-5kA
1.5/0.9 kV
Protection level L/N
Up L/N
1.25 kV
Admissible short-circuit current
Isccr
10 000 A
Technology
MOV
SPD configuration
3-phase+Neutral
Connection to Network
By screw terminals: 1.5-10mm² (L/N) or 2.5-25mm² (PE)
Format
Plug-in modular box
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Failsafe mode
Disconnection from AC network
Disconnection indicator
3 mechanical indicators
Spare module(s)
DSM440-230G and DSM440-230/GPE
Remote signaling of disconnection
Option DS440S-230/G : output on changeover contact
Dimensions
See diagram
Weight
0.214 kg
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 ed.4
Certification
EAC
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Fuses
50 A min. - 125 A max. - Fuses Type gG
