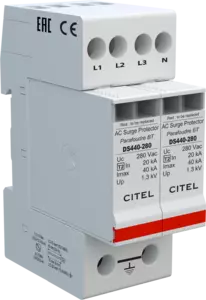

Compact 3-phase+N Type 2 surge protector - 230/400 V - Pluggable

DS440-280
Part Number 311102
DS440-280
  • Compact 3-Phase Type 2 surge protector
  • In : 20 kA
  • Imax : 40 kA
  • Common mode
  • Pluggable module
  • Remode Signaling contact option
  • EN 61643-11, IEC 61643-11, UL1449 ed.5 compliance
Contact Us
The DS440 Type 2 surge protectors are compact devices designed to protect 3-phase+N networks at the main switchboard. They provide a common or common/differential mode protection. This SPD is based on high energy varistor equipped with thermal disconnectors and failure indicator to comply with standards. The DS440 is DIN rail compatible and is built with a plug-in module and fixed base, which allows an easy and fast maintenance.
Select another reference:
SPD type
2
Network
 230/400 V 3-phase
AC system
 TN
Nominal line voltage
 Un 230 Vac
Max. AC operating voltage
Uc 280 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT 335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT 440 Vac disconnection
Residual Current
Leakage current to Ground
 Ipe < 0.5 mA
Follow current
If None
Nominal discharge current
15 x 8/20 µs impulses
 In 20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 40 kA
Connection mode(s)
 L/PE and N/PE
Protection mode(s)
 Common mode
Protection level CM/DM
@ In (8/20µs)
Up mc/md 1.3 kV
Admissible short-circuit current
 Isccr 10 000 A
Technology
 MOV
SPD configuration
 3-phase+Neutral
Connection to Network
 By screw terminals: 1.5-10mm² (L/N) or 2.5-25mm² (PE)
Format
 Plug-in modular box
Mounting
 Symmetrical rail 35 mm (EN 60715)
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Failsafe mode
 Disconnection from AC network
Disconnection indicator
 4 mechanical indicators
Spare module(s)
 DSM440-280
Remote signaling of disconnection
 Option DS440S-280 : output on changeover contact
Dimensions
 See diagram
Weight
 0.235 kg
Standards compliance
 IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
Thermal disconnector
 Internal
Installation ground fault breaker
 Type 'S' or delayed
Back-up protection device
50 A min. - 125 A max. - Fuses Type gG
