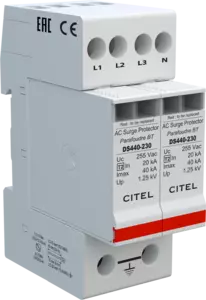

Compact 3-phase+N Type 2 surge protector - 230/400 V - Pluggable

DS440-230
Part Number: 311702
DS440-230
  • Compact 3-Phase Type 2 surge protector
  • In : 20 kA
  • Imax : 40 kA
  • Common mode
  • Pluggable module
  • Remode Signaling contact option
  • EN 61643-11, IEC 61643-11, UL1449 ed.5 compliance

The DS440 Type 2 surge protectors are compact devices designed to protect 3-phase+N networks at the main switchboard. They provide a common or common/differential mode protection. This SPD is based on high energy varistor equipped with thermal disconnectors and failure indicator to comply with standards. The DS440 is DIN rail compatible and is built with a plug-in module and fixed base, which allows an easy and fast maintenance.

Select another reference:

SPD type
2
Network
230/400 V 3-phase
AC system
TN
Nominal line voltage
Un 230 Vac
Max. AC operating voltage
Uc 255 Vac
Temporary Over Voltage (TOV) Charasteristics - 5 sec.
Without disconnection
UT 335 Vac withstand
Temporary Over Voltage (TOV) Charasteristics - 120 mn
Without disconnection or with safety disconnection
UT 440 Vac disconnection
Residual Current
Leakage current to Ground
Ipe < 0.5 mA
Follow current
If None
Nominal discharge current
15 x 8/20 µs impulses
In 20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax 40 kA
Connection mode(s)
L/PE and N/PE
Protection mode(s)
Common mode/Differential mode
Residuel voltage at 5 kA
@ 5 kA (8/20µs)
Up-5kA 0.9 kV
Protection level CM/DM
@ In (8/20µs)
Up mc/md 1.25 kV
Admissible short-circuit current
Isccr 10 000 A
Technology
MOV
SPD configuration
3-phase+Neutral
Connection to Network
By screw terminals: 1.5-10mm² (L/N) or 2.5-25mm² (PE)
Format
Plug-in modular box
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu -40/+85°C
Protection rating
IP20
Failsafe mode
Disconnection from AC network
Disconnection indicator
4 mechanical indicators
Spare module(s)
DSM440-230
Remote signaling of disconnection
Option DS440S-230 : output on changeover contact
Dimensions
See diagram
Weight
0.235 kg
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Back-up protection device
50 A min. - 125 A max. - Fuses Type gG
