Type 1+2+3 AC surge protector - Unipolar
Part Number: 29221022
DACN1-25VGS-10-440
- Type 1 + 2+3 AC surge protector
- VG Technology
- In: 25 kA
- Iimp: 25 kA on 10/350µs impulse
- No leakage current
- Unpluggable module for each phase
- Remote signaling
- Optimized to TOV
- EN 61643-11, IEC 61643-11 complied
The DACN1-25VG is an extreme duty Type 1+2+3 SPD designed to protect AC powerline at the main switchboard of an installation equipped with lightning rod, and in wind turbines' application, the low-voltage side of transformer and power side of convertor is the typical application.
Equipped with exclusive CITEL’s VG technology, the range achieves an high protection level, guaranteeing a maximum protection efficiency, a absence of follow and leakage currents, a simplification of use (no additional lightning arrester required) and a maximum lifetime.
Certificates
Datasheet
|
SPD type
|
IEC | 1+2+3 |
|
AC system
|
TN |
|
|
Max. AC operating voltage
|
Uc | 440 Vac |
|
Max. load current @25°C
|
IL | 100 A |
|
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
|
UT | 580 Vac withstand |
|
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
|
UT | 770 Vac disconnection |
|
Residual Current
Leakage current to Ground
|
Ipe | None |
|
Follow current
|
If | None |
|
Nominal discharge current
15 x 8/20 µs impulses
|
In | 25 kA |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 70 kA |
|
Total Maximum discharge current
max. total withstand @ 8/20 µs
|
Imax Total | 140 kA |
|
Impulse current by pole
max. withstand 10/350µs by pole
|
Iimp | 25 kA |
|
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
|
Uoc | 6 kV |
|
Specific energy by pole
max. withstand 10/350 µs
|
W/R | 156 kJ/ohm |
|
Protection level
@ In (8/20µs) and @ 6 kV (1,2/50 µs)
|
Up | 1.5 kV |
|
Admissible short-circuit current
|
Isccr | 50 000 A |
|
Technology
|
VG Technology (MOV+GSG) |
|
|
SPD configuration
|
Single phase |
|
|
Connection to Network
|
By screw terminals: 6-35mm² / by bus |
|
|
Format
|
1-pole modular box |
|
|
Plugable
|
No |
|
|
Mounting
|
Symmetrical rail 35 mm (EN 60715) |
|
|
Housing material
|
Thermoplastic UL94 V-0 |
|
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP20 |
|
|
Failsafe mode
|
Disconnection from AC network |
|
|
Disconnection indicator
|
1 mechanical indicator - Red/Green |
|
|
Remote signaling of disconnection
|
Output on changeover contact |
|
|
Wiring for remote signaling
|
1.5 mm² max. |
|
|
Max. Voltage/Current for remote signaling
|
250 V / 0.5 A (AC) / 30 V / 3 A (DC) |
|
|

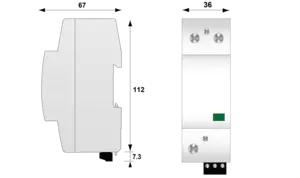

Dimensions
|
See diagram - 2TE (EN43880) |
|
Standards compliance
|
EN 61643-11 / IEC 61643-11 |
|
Thermal disconnector
|
Internal |
|
|
Installation ground fault breaker
|
Type 'S' or delayed |
|
|
Back-up protection device
|
Fuse assembly: SFD1-25S-10 / or Fuses Type gG 315 A |
