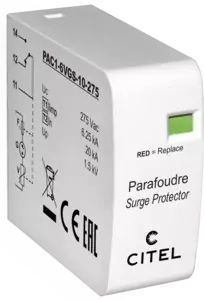

Type 1 AC Surge Protector for PCB mounting

PAC1-6VGS-10-275

Part Number 8713407

Select another reference:

Electrical Properties Mechanical Properties Norms Deconnector Schematics

SPD type	IEC	1+2
Max. AC operating voltage	Uc	275 Vac
Residual Current Leakage current to Ground	Ipe	None
Nominal discharge current 15 x 8/20 µs impulses	In	20 kA
Impulse current by pole max. withstand 10/350µs by pole	Iimp	6.25 kA
Protection level @ In (8/20µs)	Up	1.5 kV
Admissible short-circuit current	Isccr	25 000 A

Technology		VG Technology (MOV+GSG)
Connection to Network		Through soldering pins
Mounting		On Printed Circuit Board
Housing material		Thermoplastic UL94 V-0
Operating temperature	Tu	-40/+85°C
Protection rating		IP20
Disconnection indicator		1 mechanical indicator
Remote signaling of disconnection		Output on changeover contact
Dimensions		See diagram
Weight		0.062 kg

Standards compliance

EN 61643-11 / IEC 61643-11 *The standard cover devices. PPV/PAC series are components. Compliant when combined is an assembly.

Thermal disconnector		Internal
Back-up protection device		Without

Description: Type 1 AC Surge Protector for PCB mounting
Standards compliance: EN 61643-11 / IEC 61643-11 *The standard cover devices. PPV/PAC series are components. Compliant when combined is an assembly.
Technology: VG Technology (MOV+GSG)
Remote signaling of disconnection: Output on changeover contact
SPD type : 1+2
Max. AC operating voltage : 275 Vac
Residual Current : None
Impulse current by pole : 6.25 kA
Protection level : 1.5 kV
Admissible short-circuit current: 25 000 A
