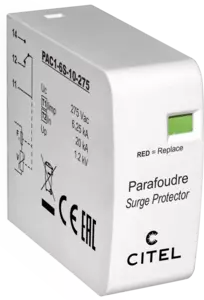

Type 1 AC Surge Protector for PCB mounting

PAC1-6S-10-275
Part Number 8713207
PAC1-6S-10-275
  • Type 1+2 AC surge protector
  • PCB mounting
  • MOV technology
  • Iimp: 6,25 kV
  • Remote signaling
  • IEC 61643-31 and EN 61643-11 compliance*


Select another reference:

SPD type
IEC

1+2

Max. AC operating voltage
Uc

275 Vac

Operating current
Continious current at Uc
Ic

< 0.1 mA

Nominal discharge current
15 x 8/20 µs impulses
In

20 kA

Impulse current by pole
max. withstand 10/350µs by pole
Iimp

6.25 kA

Protection level
@ In (8/20µs)
Up

1.2 kV

Admissible short-circuit current
Isccr

25 000 A

Connection to Network

Through soldering pins

Mounting

On Printed Circuit Board

Housing material

Thermoplastic UL94 V-0

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Disconnection indicator

1 mechanical indicator

Remote signaling of disconnection

Output on changeover contact

Dimensions

See diagram

Weight

0.075 kg

Standards compliance

EN 61643-11 / IEC 61643-11 *The standard cover devices. PPV/PAC series are components. Compliant when combined is an assembly.

Thermal disconnector

Internal

Back-up protection device

Without
