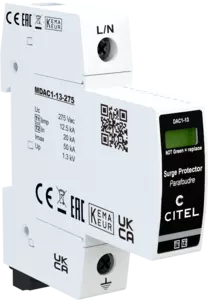

Type 1+2 AC surge protector - 1-pole

DAC1-13S-10-275
Part Number 821710221
DAC1-13S-10-275
  • Type 1 + 2 AC surge protector
  • In : 20 kA
  • Iimp : 12.5 kA
  • Pluggable module for each phase
  • Remote signaling
  • EN 61643-11, IEC 61643-11 certified
  • UL1449 ed.5 compliance
Contact Us
The DAC1-13 is an extreme duty Type 1+2 pluggable SPD designed to protect AC powerline at the main switchboard of an installation equipped with lightning rod. The technology ‘Multi-varistor” allows a very high discharge current capability in small dimensions and the best possible behavior to the AC network (no follow current). In the light of their high discharge capability, the DAC1-13 surge protectors are especially compact and are available in multipolar versions to protect single or 3-phase AC networks.
SPD type
1+2
Max. AC operating voltage
Uc 275 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT 335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT 440 Vac disconnection
Residual Current
Leakage current to Ground
 Ipe < 1 mA
Follow current
If None
Nominal discharge current
15 x 8/20 µs impulses
 In 20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 50 kA
Impulse current by pole
max. withstand 10/350µs by pole
 Iimp 12.5 kA
Specific energy by pole
max. withstand 10/350 µs
 W/R 40 kJ/ohm
Protection level
@ In (8/20µs)
 Up 1.3 kV
Residual voltage at 5 kA
@ 5 kA (8/20µs)
 Up-5kA 1 kV
Admissible short-circuit current
 Isccr 50 000 A
Network type
 AC
Technology
 MOV
SPD configuration
 Single phase
Connection to Network
 By screw terminals: 2.5-25mm² (35mm² rigid)
Format
 Plug-in modular box
Plugable
 Yes
Mounting
 Symmetrical rail 35 mm (EN 60715)
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Failsafe mode
 Disconnection from AC network
Disconnection indicator
 1 mechanical indicator - Red/Green
Spare module(s)
 MDAC1-13-275
Remote signaling of disconnection
 Output on changeover contact
Wiring for remote signaling
 1.5 mm² max.
Max. Voltage/Current for remote signaling
 250 V / 0.5 A (AC) / 30 V / 3 A (DC)
Dimensions
 See diagram - 1TE (EN43880)
Weight
 0.183 kg
Standards compliance
 IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
 KEMA
Thermal disconnector
 Internal
Installation ground fault breaker
 Type 'S' or delayed
Back-up protection device
315 A max. - Fuses Type gG / or SFD1-25S
