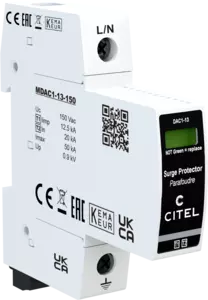

Type 1+2 AC surge protector - 1-pole

DAC1-13S-10-150
Part Number 821710121
DAC1-13S-10-150
  • Type 1 + 2 AC surge protector
  • In : 20 kA
  • Iimp : 12.5 kA
  • Pluggable module for each phase
  • Remote signaling
  • EN 61643-11, IEC 61643-11 certified
  • UL1449 ed.5 compliance

The DAC1-13 is an extreme duty Type 1+2 pluggable SPD designed to protect AC powerline at the main switchboard of an installation equipped with lightning rod. The technology ‘Multi-varistor” allows a very high discharge current capability in small dimensions and the best possible behavior to the AC network (no follow current). In the light of their high discharge capability, the DAC1-13 surge protectors are especially compact and are available in multipolar versions to protect single or 3-phase AC networks.


SPD type
IEC

1+2

Max. AC operating voltage
Uc

150 Vac

Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT

180 Vac withstand

Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT

230 Vac disconnection

Residual Current
Leakage current to Ground
Ipe

< 1 mA

Follow current
If

None

Nominal discharge current
15 x 8/20 µs impulses
In

20 kA

Max. discharge current
max. withstand @ 8/20 µs by pole
Imax

50 kA

Impulse current by pole
max. withstand 10/350µs by pole
Iimp

12.5 kA

Impulse current N/PE
max. withstand 10/350µs
Iimp N/PE

50 kA

Specific energy by pole
max. withstand 10/350 µs
W/R

40 kJ/ohm

Protection level
@ In (8/20µs)
Up

0.9 kV

Residual voltage at 5 kA
@ 5 kA (8/20µs)
Up-5kA

0.6 kV

Admissible short-circuit current
Isccr

50 000 A

Network type

AC

Technology

MOV

SPD configuration

Single phase

Connection to Network

By screw terminals: 2.5-25mm² (35mm² rigid)

Format

Plug-in modular box

Plugable

Yes

Mounting

Symmetrical rail 35 mm (EN 60715)

Housing material

Thermoplastic UL94 V-0

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Failsafe mode

Disconnection from AC network

Disconnection indicator

1 mechanical indicator - Red/Green

Spare module(s)

MDAC1-13-150

Remote signaling of disconnection

Output on changeover contact

Wiring for remote signaling

1.5 mm² max.

Max. Voltage/Current for remote signaling

250 V / 0.5 A (AC) / 30 V / 3 A (DC)

Dimensions

See diagram - 1TE (EN43880)

Weight

0.148 kg

Standards compliance

IEC 61643-11 / EN 61643-11 / UL1449 ed.5

Certification

KEMA

Thermal disconnector

Internal

Installation ground fault breaker

Type 'S' or delayed

Back-up protection device

max. 315 A (gL/gG)
