1-pole Type 1 and Type 2 SPD for 48 Vdc

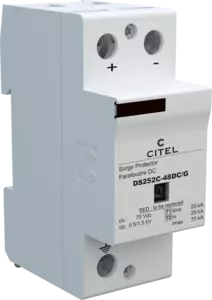

DS252C-48DC/G
Part Number 3415
DS252C-48DC/G
  • 2-poles surge protector 48 Vdc
  • Type 1 and Type 2 application
  • In 25 kA / Imax 70 kA
  • Remote signaling
  • Iimp 25 kA
  • IEC 61643-11 and EN61643-11 compliance

DS252C-48DC/G surge protectors are designed to protect equipment connected to DC power supplies from lightning surges

Select another reference:

SPD type
IEC

1+2

Network

48 Vdc

Nominal line voltage
Un

48 Vdc

Nominal DC voltage
Un-dc

48 Vdc

Max. DC operating voltage
Uc

75 Vdc

Residual Current
Leakage current to Ground
Ipe

None

Operating current
Continious current at Uc
Ic

None

Follow current
If

None

Nominal discharge current
15 x 8/20 µs impulses
In

25 kA

Max. discharge current
max. withstand @ 8/20 µs by pole
Imax

70 kA

Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total

140 kA

Impulse current by pole
max. withstand 10/350µs by pole
Iimp

25 kA

Total lightning current
max. total withstand @ 10/350µs
Itotal

50 kA

Specific energy by pole
max. withstand 10/350 µs
W/R

156 kJ/ohm

Connection mode(s)

+/- and +/PE

Protection mode(s)

Common/Differential mode

Protection level +/-
@ In (8/20µs)
Up

0.5 kV

Protection level +/PE (-/PE)
@ In (8/20µs)
Up

1.5 kV

Admissible short-circuit current
Isccr

50 000 A

Technology

MOV+GDT

SPD configuration

2-poles

Connection to Network

By screw terminals: 6-35mm² / by bus

Format

1-pole modular box

Mounting

Symmetrical rail 35 mm (EN 60715)

Housing material

Thermoplastic UL94 V-0

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Failsafe mode

Disconnection from DC network

Disconnection indicator

1 mechanical indicator

Spare module(s)

DSM70R-48DC

Remote signaling of disconnection

Output on changeover contact

Dimensions

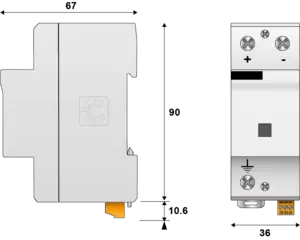

See diagram

Weight

0.205 kg

Standards compliance

IEC 61643-11 / EN 61643-11 / UL1449 ed.5

Certification

UL

Thermal disconnector

Internal

Back-up protection device

Fuses type gG - 315 A
