Smart SPD Monitoring Device

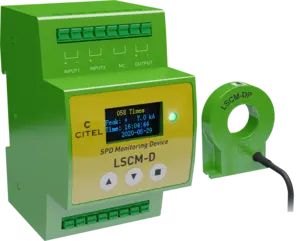

LSCM-D/230AC/P1000
LSCM-D/230AC/P1000
Part Number: 793534
  • Lightning and Surge Current Counter & SPD monitoring device
  • Wide surge current detection range:
    • 0.3/25 KA or 1/50 kA @10/350µs
    • 0.3/50 kA or 1/100 kA @ 8/20 µs
  • Front display for access to recorded events and device parameters
  • Peak current and time stamping recording of the surge currents
  • RS485 communication interface / MODBUS protocol
  • Monitoring features : 2 inputs (SPD or disconnector status) / 1 ouput
  • IEC62561-6 compliance

Lightning counters are designed to detect and record the impulse current conducted by the down conductor of the lightning protection system or by the earthing wire of a protective surge protection. This unit is useful to assess the stress of the protection devices, in order to perform their efficient maintenance.


Max. AC operating voltage Mcov 230 Vac
Connection mode(s) 2 connection PE ports
Minimum current sensibility Itc 1000 A
Max. admissible impulse current Imcw 100 kA (8/20µs) / 50 kA (10/350 µs)
Voltage measurement error 0.1 kA, +/- 5%
Wiring Connection wire sensor : Coaxial-cable AWG26
Mounting Symmetrical rail 35 mm (EN60715)
Housing material Thermoplastic UL94-V0
Operating and storage temperature -20/+60°C / -25 /+70°C
Protection rating IP20
Connection - Counter : Spring-cage terminals - Sensor : Plug-in (1 sensor line port)
Remote signaling of disconnection Two channel to input switching signal and one channel of output switching signal
Display 128*64 lattice OLED display, green/red status LED display
Dimensions See diagram
Weight 0.216 kg
Standards compliance EN 62561-6
