Type 2+3 AC surge protector -3-Phase+N - Monobloc
DACN30VGS-40-1260
Part Number 29424032
- Type 2 + 3 AC surge protector
- VG Technology
- In: 15 kA
- No leakage current
- Monobloc module for each phase
- Remote signaling
- Optimized to TOV
- EN 61643-11, IEC 61643-11 and UL1449 ed.5 compliance
The monobloc surge protectors Type 2+3 DACN30VG, are designed to protect AC powerline with Un=1140Vac, for wind turbines application, etc.
Equipped with the exclusive CITEL’s VG technology, the range achieves an improved protection level and a total absence of leakage current, guaranteeing a maximum protection efficiency, with high capacity to withstand harmonic interference to ensure maximum lifetime.
The surge protectors DACN30VG, are available in multipolar version to protect single or 3-phase networks.
Select another reference:
SPD type
|
2+3 | |
Nominal line voltage
|
Un | 1140 Vac |
Max. AC operating voltage
|
Uc | 1260 Vac |
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
|
UT | 1650 Vac withstand |
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
|
UT | 2200 Vac disconnection |
Residual Current
Leakage current to Ground
|
Ipe | None |
Follow current
|
If | None |
Nominal discharge current
15 x 8/20 µs impulses
|
In | 15 kA |
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 30 kA |
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
|
Uoc | 6 kV |
Protection level
@ In (8/20µs)
|
Up | 4.0 kV |
Protection level
@ In (8/20µs) and @ 6 kV (1,2/50 µs)
|
Up | 5.0 kV |
Residual voltage at 5 kA
@ 5 kA (8/20µs)
|
Up-5kA | 3.2 kV |
Admissible short-circuit current
|
Isccr | 25 000 A |
Network type
|
AC | |
Technology
|
VG Technology (MOV+GSG) | |
SPD configuration
|
3-phase+Neutral | |
Connection to Network
|
By screw terminals: 2.5-25mm² (35mm² rigid) | |
Format
|
Monobloc modular box | |
Plugable
|
No | |
Mounting
|
Symmetrical rail 35 mm (EN 60715) | |
Housing material
|
Thermoplastic UL94 V-0 | |
Operating temperature
|
Tu | -40/+85°C |
Protection rating
|
IP20 | |
Failsafe mode
|
Disconnection from AC network | |
Disconnection indicator
|
1 mechanical indicator - Red/Green | |
Remote signaling of disconnection
|
Output on changeover contact | |
Wiring for remote signaling
|
1.5 mm² max. | |
Max. Voltage/Current for remote signaling
|
250 V / 0.5 A (AC) / 30 V / 3 A (DC) | |

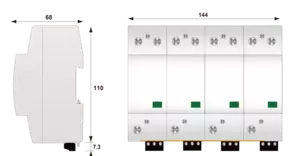

Dimensions
|
See diagram - 8TE (EN43880) | |
Weight
|
1.000 kg |
Standards compliance
|
IEC 61643-11 / EN 61643-11 / UL1449 ed.5 |
Thermal disconnector
|
Internal | |
Installation ground fault breaker
|
Type 'S' or delayed | |
Back-up protection device
|
Fuses type gG - 50 A |
