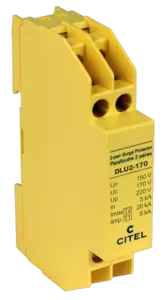

2-pair monobloc Telecom surge protector
DLU2-170
DLU2-170
Part Number: 640405
  • For DIN rail mounting
  • Monobloc housing
  • 2-pair
  • Uc : 170 V
  • IEC 61643-21 compliance
  • UL497A
Installation Sheet

DLU2 surge protectors are designed to protect, against surge voltages due to lightning, terminals equipment connected to industrial buses, telecom lines or datalines. These surge protectors must be installed on symmetrical DIN rail and are available for most of the transmission lines: line voltage from 6 to 170V, bitrate up to 10 Mbit/s. These products are 2-pair surge protectors and are made with DIN rail monobloc enclosure



Network
RTC, ADSL, SDSL, SHDSL, VDSL2
Nominal line voltage
150 V
Max. DC operating voltage
170 V
Max. load current
300 mA
Max. frequency
> 10 MHz
Insertion loss
< 1 dB
Max. discharge current
max. withstand @ 8/20 µs by pole
20 kA
Line inductance
No
Protection mode(s)
Common/Differential mode
Protection level
Following the test category C3 (IEC61643-21) - Line/Line
220 V
Max. shunt capacitance < 50 pF
Impulse current
2 x 10/350µs Test - D1 Category
5 kA
Nominal discharge current
8/20µs Test x 10 - C2 Category
5 kA
Line resistance
< 4.7 Ohm
Technology GDT+Clamping diode
SPD configuration 2 pairs
Connection to Network screw terminal - cross section 0.4-1.5 mm²
Format
DIN box
Mounting
Symmetrical rail 35 mm (EN60715)
Housing material Thermoplastic UL94-V0
Operating temperature -40/+85°C
Protection rating IP20
Failsafe behavior Short-circuit - transmision cut-off - fault mode 2
Disconnection indicator Transmission interrupt
Remote signaling of disconnection
no
Max. number of pairs 2
Dimensions
See diagram
Certification
UL listed
Standards compliance
IEC 61643-21 / EN 61643-21 / UL497A
