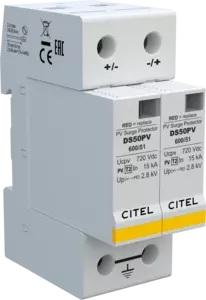

Type 2 PV surge protector

DS50PV-600/51
Part Number 480421
DS50PV-600/51
  • Type 2 surge protector for Photovoltaic
  • PV voltage: 600 Vdc
  • In: 15 kA
  • Imax: 40 kA
  • Pluggable module
  • Remote signaling (option)
  • UTE C61-740-51, EN 50539-11 compliance

DS50PV/51 are type 2 surge protectors are designed to protect against lightning surge voltages in photovoltaic power supply network. Based on the use of specific varistors, providing a protection in common mode or common and differential mode.

Select another reference:

SPD type
IEC

2

Network

PV 500 Vdc

Nominal PV voltage
Uocstc

600 Vdc

Max. PV operating voltage
Ucpv

720 Vdc

Residual Current
Leakage current to Ground
Ipe

< 0.2 mA

PV Permanent Operating current
Current consumption at Ucpv
Icpv

< 0.1 mA

Follow current
If

None

Nominal discharge current
15 x 8/20 µs impulses
In

15 kA

Max. discharge current
max. withstand @ 8/20 µs by pole
Imax

40 kA

Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total

60 kA

Current withstand short circuit PV
Iscpv

15 000 A

Connection mode(s)

+/-/PE

Protection mode(s)

Common mode

Protection level +/PE (-/PE)
@ In (8/20µs)
Up

2.8 kV

Technology

MOV

Connection to Network

By screw terminals: 2.5-25mm²

Format

Plug-in modular box

Plugable

Yes

Mounting

Symmetrical rail 35 mm (EN 60715)

Housing material

Thermoplastic UL94 V-0

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Failsafe mode

Disconnection SPD of the PV line

Disconnection indicator

2 mechanical indicators - Red/Green

Spare module(s)

DSM50PV-600/51

Remote signaling of disconnection

Option DS50PVS-600/51 - output on changeover contact

Dimensions

See diagram

Weight

0.249 kg

Standards compliance

EN 61643-31 / EN 50539-11

Certification
Thermal disconnector

Internal

Back-up protection device

Without
