Type 2 PV surge protector

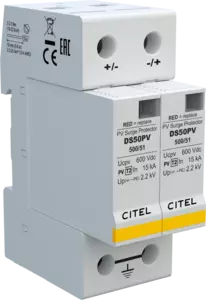

DS50PV-500/51
Type 2 PV surge protector
DS50PV-500/51
Part Number
480121
Type 2 surge protector for Photovoltaic
PV Voltage: 500 Vdc
In : 15 kA
Imax : 40 kA
Pluggable module
Remote signaling (option)
IEC 61643-31/EN61643-31 compliance
Datasheet
Installation Sheet
Tender specifications
Contact Us
DS50PV/51 are type 2 surge protectors are designed to protect against lightning surge voltages in photovoltaic power supply network. Based on the use of specific varistors, providing a protection in common mode or common and differential mode.
Select another reference:
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
2
Network
PV network 500 Vdc
Nominal PV voltage
Uocstc
500 Vdc
Max. PV operating voltage
Ucpv
600 Vdc
Residual Current
Leakage current to Ground
Ipe
< 0.1 mA
PV Permanent Operating current
Current consumption at Ucpv
Icpv
< 0.1 mA
Follow current
If
None
Nominal discharge current
15 x 8/20 µs impulses
In
15 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax
40 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total
60 kA
Current withstand short circuit PV
Iscpv
15 000 A
Connection mode(s)
+/-/PE
Protection mode(s)
Common mode
Protection level +/PE (-/PE)
@ In (8/20µs)
Up
2.2 kV
Technology
MOV
Connection to Network
By screw terminals: 2.5-25mm²
Format
Plug-in modular box
Plugable
Yes
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Failsafe mode
Disconnection SPD of the PV line
Disconnection indicator
2 mechanical indicators
Spare module(s)
DSM50PV-500/51
Remote signaling of disconnection
Option DS50PVS-500/51 - output on changeover contact
Dimensions
See diagram
Weight
0.235 kg
Standards compliance
EN 61643-31 / EN 50539-11
Certification
Thermal disconnector
Internal
Back-up protection device
Without
×
Description:
Type 2 PV surge protector
Standards compliance:
EN 61643-31 / EN 50539-11
Certification:
EAC
Technology:
MOV
Remote signaling of disconnection:
Option DS50PVS-500/51 - output on changeover contact
SPD type :
2
Network:
PV network 500 Vdc
Max. PV operating voltage:
600 Vdc
Residual Current :
< 0.1 mA
Max. discharge current :
40 kA
Total Maximum discharge current :
60 kA
CITEL
Reference:
DS50PV-500/51
Part Number:
480121
Or equivalent
Read more
About CITEL
Read more
