Type 1 PV surge protector
DS60VGPV-600G/51
Type 1+2 PV surge protector - 1500 Vdc
DS60VGPV-600G/51
Part Number
3963
Type 1+2 surge protector for photovoltaic
VG technology
600 Vdc
No leakAge, no operating currents
Improved life expectancy
Iimp: 12.5 kA/pole
Common/Differential mode protection
Remote signaling
IEC 61643-31, EN 61643-31, EN 50539-11, UL1449 ed.5 compliance
Datasheet
Installation Sheet
Tender specifications
Contact Us
DS60VGPV/51 are type 1+2 heavy duty surge protectors are designed to protect against lightning surge voltages in photovoltaic power supply network. These protectors are recommended when a direct lightning strike is possible on the installation. The DS60VGPV/51 SPDs may withstand up to 12.5 kA 10/350µs, it incorporates CITEL's exclusive patented 'VG technology'
Select another reference:
DS60VGPV-1000G/51
DS60VGPV-1500G/51
DS60VGPV-600G/51
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
1+2
Network
PV 600 Vdc
Nominal PV voltage
Uocstc
600 Vdc
Max. PV operating voltage
Ucpv
720 Vdc
Residual Current
Leakage current to Ground
Ipe
None
PV Permanent Operating current
Current consumption at Ucpv
Icpv
None
Follow current
If
None
Nominal discharge current
15 x 8/20 µs impulses
In
20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax
40 kA
Impulse current by pole
max. withstand 10/350µs by pole
Iimp
12.5 kA
Total lightning current
max. total withstand @ 10/350µs
Itotal
25 kA
Current withstand short circuit PV
Iscpv
15 000 A
Connection mode(s)
+/-/PE
Protection mode(s)
Common/Differential mode
Protection level +/-
@ In (8/20µs)
Up
2.8 kV
Protection level +/PE (-/PE)
@ In (8/20µs)
Up
2.2 kV
Technology
VG Technology (MOV+GSG)
Connection to Network
By screw terminals: 6-35mm²
Format
1-pole modular box
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Failsafe mode
Disconnection SPD of the PV line
Disconnection indicator
1 mechanical indicator
Remote signaling of disconnection
Output on changeover contact - 250 Vac/0.5 A (AC) - 30 Vdc/3A (DC)

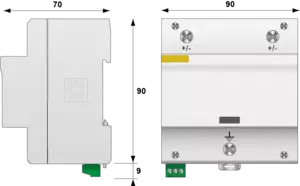

Dimensions
See diagram
Weight
0.252 kg
Standards compliance
IEC 61643-31 / EN 61643-31 / EN 50539-11 / UL1449 ed.5
Certification
Thermal disconnector
Internal
Back-up protection device
Without
×
Description:
Type 1+2 PV surge protector - 1500 Vdc
Standards compliance:
IEC 61643-31 / EN 61643-31 / EN 50539-11 / UL1449 ed.5
Certification:
EAC
Technology:
VG Technology (MOV+GSG)
Remote signaling of disconnection:
Output on changeover contact - 250 Vac/0.5 A (AC) - 30 Vdc/3A (DC)
SPD type :
1+2
Network:
PV 600 Vdc
Max. PV operating voltage:
720 Vdc
Residual Current :
None
Max. discharge current :
40 kA
Impulse current by pole :
12.5 kA
CITEL
Reference:
DS60VGPV-600G/51
Part Number:
3963
Or equivalent
