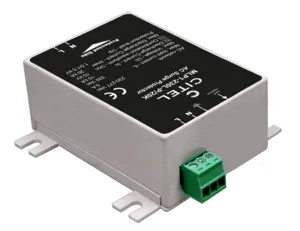

Surge protector for LED lighting system Class 1
MLP1-230L-P/20K
Part Number 721213
Specially developed spd with combined protection for 2-phase power supply (control phase):
- Many variants available depending on application
- With screw terminals or cable wiring
- IP65 versions
- For protection class I or II application
- Developed for Uoc: 20 kV and Imax: 20 kA for highest outdoor requirements according to IEEE & ANSI
- Optical error signalling
The MLP range is a comprehensive series of AC surge protectors
dedicated to LED lighting system. Some versions are
equipped with an extra dataline surge protection (RS485 or
DALI) in order to provide a full solution for LED systems with
transmission features. By this way the MLP range is able to provide
all the existing configurations with an efficient solution .
MLP surge protectors are based on a powerful association of
MOV and GDT components, able to protect LED system against
huge surges without disconnection.
In the worse case, the SPD will fail in safety condition. Indication
of the SPD failure is performed through power supply cut off
and/or through remote signaling feature.
Select another reference:
SPD type
|
2 (or 3) | |
Network
|
220-240 V Single-phase | |
AC system
|
TT-TN | |
Nominal line voltage
|
Un | 230-277 Vac |
Max. AC operating voltage
|
Uc | 320 Vac |
Max. frequency
|
f max. | 10 MHz |
Max. load current
@25°C
|
IL | 5 A |
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
|
UT | 335 Vac withstand |
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
|
UT | 440 Vac disconnection |
Residual Current
Leakage current to Ground
|
Ipe | None |
Follow current
|
If | None |
Nominal discharge current
15 x 8/20 µs impulses
|
In | 10 kA |
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 20 kA |
Total Maximum discharge current
max. total withstand @ 8/20 µs
|
Imax Total | 20 kA |
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
|
Uoc | 20 kV |
Withstand on overvoltages IEEE C62.41.1
|
10 kV / 10 kA | |
Protection mode(s)
|
Common/Differential mode | |
Protection level L/N
@ In (8/20µs)
|
Up L/N | 1.5 kV |
Protection level L/PE
@ In (8/20µs)
|
Up L/PE | 1.5 kV |
Protection level CM/DM
@ In (8/20µs)
|
Up mc/md | 1.5 kV / 1.5 kV |
Admissible short-circuit current
|
Isccr | 10 000 A |
Technology
|
MOV+GDT | |
Connection to Network
|
By screw terminal: 1.5mm² max. | |
Mounting
|
On plate | |
Housing material
|
Thermoplastic UL94 V-0 | |
Operating temperature
|
Tu | -40/+85°C |
Protection rating
|
IP20 | |
Failsafe mode
|
Disconnection and AC line cut-off | |
Disconnection indicator
|
LED green OFF and AC network cut-off | |
Voltage/operating indicator
|
Green Led ON | |
Remote signaling of disconnection
|
No | |
Dimensions
|
See diagram | |
Weight
|
0.086 kg |
Standards compliance
|
IEC 61643-11 / EN 61643-11 / UL1449 ed.5 |
Thermal disconnector
|
Internal | |
Installation ground fault breaker
|
Type 'S' or delayed |
