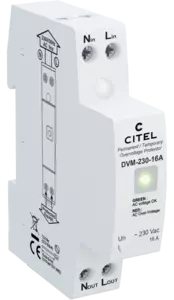

Permanent & temporary overvoltages protector (POP)
Part Number: 3589015
DVM-230-16A
- Protection against temporary overvoltages
- Automatic delayed switch-off and switch-on again
- Status display (green, red)
- Easy installation on top-hat rail
- Complies with EN 50550 standard
The DVM products are voltage monitoring relays designed to continuously control the voltage of a single-phase AC network. These devices are equipped with status indicator and with an internal relay to switch off the AC network (up to 16A load current) or to control the auxiliary contactor (load current > 16A).
Datasheet|
Network
|
230 V single-phase |
|
|
Permanent & temporary overvoltages protector
|
Yes |
|
Minimum disconnection during on AC voltage
|
3s @ 275 Vac / 1s @ 300 Vac / 0.25s @ 350 Vac / 0.07 @ 400 Vac |
|
|
Connection to Network
|
By screw terminals: 1.5-10mm² |
|
|
Housing material
|
Thermoplastic UL94 V-0 |
|
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP20 |
|
|
Disconnection indicator
|
1 mechanical indicator - Red/Green |
|
|
Dimensions
|
See diagram |
|
Standards compliance
|
IEC 63052 |
