Surge protector for LED lighting system Class 1

DSLP1-120L/Y

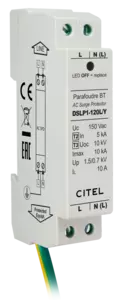

Part Number 352922
DSLP1-120L/Y
  • Type 2 (or 3) surge protectors for LED
  • Very compact (low profile)
  • DIN rail mounting
  • Screw terminal connection
  • Status indicator
  • Disconnection AC end of life
  • EN 61643-11, IEC 61643-11 compliance
Contact Us
DSLP range is an AC series surge protectors for DIN mountage create to protect LED systems. The surge protectors DSLP are verry compact to be integrated in the luminaires and are available in 2 connection modes (terminal screw or spring).
Select another reference:
SPD type
2 (or 3)
Network
 120 V single-phase or 2-phase
AC system
 TN
Nominal line voltage
 Un 120 Vac
Max. AC operating voltage
Uc 150 Vac
Max. load current
@25°C
 IL 10 A
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT 120 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT 230 Vac disconnection
Residual Current
Leakage current to Ground
 Ipe None
Nominal discharge current
15 x 8/20 µs impulses
 In 5 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 10 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total 20 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
 Uoc 10 kV / 5 kA
Withstand on overvoltages IEEE C62.41.1
 10 kV / 10 kA
Protection mode(s)
 Common/Differential mode
Protection level L/N
@ In (8/20µs)
 Up L/N 1.5 kV
Protection level L/PE
@ In (8/20µs)
 Up L/PE 1.5 kV
Admissible short-circuit current
 Isccr 10 000 A
Technology
 MOV+GDT
Connection to Network
 Screw terminal 2.5 mm² max. Earthing conductor 2 mm² - length 60 cm
Mounting
 Symmetrical rail 35 mm (EN 60715)
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Failsafe mode
 Disconnection from AC network
Disconnection indicator
 LED green OFF and AC network cut-off
Voltage/operating indicator
 Green Led ON
Dimensions
 See diagram
Weight
 0.062 kg
Standards compliance
 EN 61643-11 / IEC 61643-11
Thermal disconnector
 Internal
Installation ground fault breaker
 Type 'S' or delayed
