LED
Combined AC/DATA LED SPD

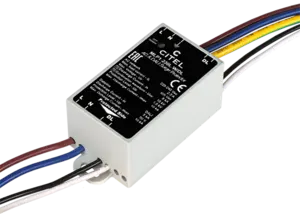

MLP1-230L-W/DL
Surge protector for LED lighting system Class 1
MLP1-230L-W/DL
Part Number
711231
Combined surge protector AC and Data
Type 2 or 3
For LED lighting system Class I
Very compact dimensions
Max. discharge current 10kA
EN 61643-11, IEC 61643-11 compliance
Datasheet
Installation Sheet
Tender specifications
Contact Us
The MLP range is a comprehensive series of AC surge protectors dedicated to LED lighting system. Some versions are equipped with an extra dataline surge protection (RS485 or DALI) in order to provide a full solution for LED systems with transmission features. By this way the MLP range is able to provide all the existing configurations with an efficient solution . MLP surge protectors are based on a powerful association of MOV and GDT components, able to protect LED system against huge surges without disconnection. In the worse case, the SPD will fail in safety condition. Indication of the SPD failure is performed through power supply cut off and/or through remote signaling feature.
Select another reference:
MLP1-230L-P/DL
MLP1-230L-W/DL
MLP2-230L-P/DL
MLP2-230L-W/DL
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
2 (or 3)
Network
AC: 220-240 V single-phase I DATA: DALI
AC system
TT-TN
Nominal line voltage
Un
230-277 Vac
Nominal line voltage
Un
24 V
Max. AC operating voltage
Uc
AC : 305 Vac I DATA : 28 Vdc
Max. frequency
f max.
DATA : 10 MHz
Insertion loss
DATA : < 1dB
Max. load current
@25°C
IL
AC : 2.5 A I DATA : 300mA
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT
335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT
440 Vac disconnection
Residual Current
Leakage current to Ground
Ipe
None
Follow current
If
None
Nominal discharge current
15 x 8/20 µs impulses
In
AC : 5kA I DATA : 5 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax
AC : 10 kA I DATA : 10 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total
AC : 20 kA I DATA : 20 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
Uoc
10 kV / 5 kA
Withstand on overvoltages IEEE C62.41.1
10 kV / 10 kA
Protection mode(s)
Common/Differential mode
Protection level
@ In (8/20µs)
Up
DATA : 50 V
Protection level L/N
@ In (8/20µs)
Up L/N
1.5 kV
Protection level L/PE
@ In (8/20µs)
Up L/PE
1.5 kV
Admissible short-circuit current
Isccr
10 000 A
Network type
AC/Data
Technology
MOV+GDT
Connection to Network
AC: Wire 1.5mm² max. DATA: Wire 1mm² max.
Mounting
On plate
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP65
Failsafe mode
Disconnection and AC line cut-off
Disconnection indicator
LED green OFF and AC network cut-off
Voltage/operating indicator
Green Led ON
Remote signaling of disconnection
No
Dimensions
See diagram
Standards compliance
IEC 61643-21 / EN 61643-21 / UL1449 ed.5
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
×
Description:
Surge protector for LED lighting system Class 1
Standards compliance:
IEC 61643-21 / EN 61643-21 / UL1449 ed.5
Technology:
MOV+GDT
Remote signaling of disconnection:
No
SPD type :
2 (or 3)
Network:
AC: 220-240 V single-phase I DATA: DALI
AC system:
TT-TN
Max. AC operating voltage :
AC : 305 Vac I DATA : 28 Vdc
Residual Current :
None
Max. discharge current :
AC : 10 kA I DATA : 10 kA
Total Maximum discharge current :
AC : 20 kA I DATA : 20 kA
Protection level :
DATA : 50 V
Admissible short-circuit current:
10 000 A
