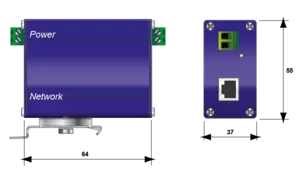

Surge protector for video survey camera Power/data
MSP-VM12/R
Part Number: 420413
- Security camera surge protector
- AC + Ethernet 100 Base-TX (connector RJ45)
- Compact aluminium housing
- Rail DIN mounting or plate
Installation Sheet
MSP-VMxx-R surge protectors were designed to protect video surveillance systems against transient overvoltages generated by lightning or industrial environment. These devices protect, in a single compact housing, all the lines connected to the system: power supply (230Vac, 24Vdc, 12Vdc or 120 Vac), dataline (6 or 8 Vdc). This compact confi guration allows a fast installation in a small footprint.
Select another reference:
| SPD type following IEC test |
2+3 |
| Network |
12 Vac/Vdc |
| AC system |
- |
| Nominal line voltage |
12 Vac/Vdc |
| Max. DC operating voltage |
15 Vac/Vdc |
| Max. load current |
5 A |
| Operating current Continious current at Uc |
None |
| Nominal discharge current 15 x 8/20 µs impulses |
5 kA |
| Max. discharge current max. withstand @ 8/20 µs by pole |
10 kA |
| Withstand on Combinaison waveform IEC 61643-11 Class III test: 1.2/50µs - 8/20µs |
10 kV / 5 kA |
| Protection mode(s) |
Common/Differential mode |
| Protection level @ In (8/20µs) |
0.22 kV |
| Protection level Following the test category C3 (IEC61643-21) - Line/Line |
220 V |
| Protection level L/N @ In (8/20µs) |
0.22 kV |
| Protection level L/PE @ In (8/20µs) |
0.22 kV |
| DATA | |
| Network |
4 pairs Ethernet 100 Base-TX |
| Max. DC operating voltage |
8 Vdc |
| Max. load current |
300mA |
| Max. frequency |
125 MHz |
| Insertion loss |
< 1dB |
| Operating current Continious current at Uc |
none |
| Max. discharge current max. withstand @ 8/20 µs by pole |
5 kA |
| Protection mode(s) |
Common/Differential mode |
| Protection level @ In (8/20µs) |
20 V |
| Protection level L/N @ In (8/20µs) |
20 V |
| Protection level L/PE @ In (8/20µs) |
20 V |
| Nominal discharge current 8/20µs Test x 10 - C2 Category |
2.5 kA |
| Technology | MOV+GDT |
| Connection to Network | screw terminal 2.5 mm² max |
| Format |
DIN rail or flange |
| Mounting |
DIN rail or plate (flange) |
| Housing material | anodized aluminum |
| Operating temperature | -40/+85°C |
| Protection rating | IP20 |
| Outdoor application |
False |
| Failsafe behavior | Disconnection and Power cut off |
| Disconnection indicator | Green LED OFF and line cut-off |
| Voltage/operating indicator | Green Led ON |
| Dimensions |
See diagram |
| Standards compliance |
IEC 61643-11 / EN 61643-11 / UL1449 4ed. |
| Thermal disconnector | Internal |
