Type 2 (or 3) AC surge protector
DS98-400

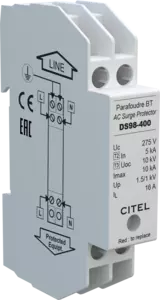

Compact single-phase type 2 (or 3) surge protector - Monobloc
DS98-400
Part Number
3509011
Discover our latest innovation : the
DACN10-21YG-275
Cost effective single-phase surge protector
Type 2 (or 3) monobloc
In : 5 kA
Imax : 10 kA
Common/Differential mode
Series or parallel wiring
EN 61643-11, IEC 61643-11, UL1449 ed.5 compliance
Datasheet
Installation Sheet
Tender specifications
Contact Us
DS98 AC surge protector is used for the 'secondary' protection of the single-phase networks against the surge voltages creating by lightning. DS98 is equipped with an internal thermal safety which will disconnet the unit from the AC network in case of end of life. This disconnection will be indicate by the turn on of the red led in the front. Very compact, the DS98 surge protector must be installed close by the equipment to protect, downstream a 'primary' surge protector. DS98 provides both a common and differential mode protection.
Select another reference:
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
2 (or 3)
Network
230 V single-phase
AC system
TN
Nominal line voltage
Un
230 Vac
Max. AC operating voltage
Uc
275 Vac
Max. load current
@25°C
IL
16 A
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT
335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT
440 Vac disconnection
Residual Current
Leakage current to Ground
Ipe
None
Follow current
If
None
Nominal discharge current
15 x 8/20 µs impulses
In
5 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax
10 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
Uoc
10 kV
Withstand on overvoltages IEEE C62.41.1
10 kV
Protection mode(s)
Common/Differential mode
Protection level L/N
@ In (8/20µs)
Up L/N
1 kV
Protection level N/PE
@ In (8/20µs)
Up N/PE
1.5 kV
Admissible short-circuit current
Isccr
10 000 A
SPD configuration
Single phase
Connection to Network
By screw terminals: 2.5mm² max.
Format
Monobloc modular box
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Outdoor application
No
Failsafe mode
Disconnection from AC network
Disconnection indicator
Red light on
Remote signaling of disconnection
option DS98S-400
Dimensions
See diagram
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Back-up protection device
Fuses type gG - 20A
×
Description:
Compact single-phase type 2 (or 3) surge protector - Monobloc
Standards compliance:
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification:
EAC
SPD configuration:
Single phase
Remote signaling of disconnection:
option DS98S-400
SPD type :
2 (or 3)
Network:
230 V single-phase
AC system:
TN
Max. AC operating voltage :
275 Vac
Residual Current :
None
Max. discharge current :
10 kA
Admissible short-circuit current:
10 000 A
CITEL
Reference:
DS98-400
Part Number:
3509011
Or equivalent
