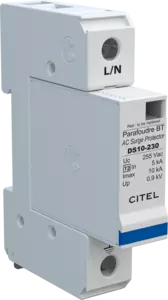

Type 2 (or 3) AC surge protector - one-phase

DS11-230
Part Number 341501
DS11-230
  • Type 2 (or 3) AC one-phase surge protector
  • In : 5 kA
  • Imax : 10 kA
  • Pluggable module by phase
  • Remote signaling option
  • EN 61643-11, IEC 61643-11, UL1449 ed.5 compliance
Contact Us
DS10 type2 AC surge protector are used mainly for primary protection of single and 3- phase networks at the main electrical panel. They provide common-mode or common and differential mode. This SPD is based on high energy varistor equipped with thermal disconnector and failure indicator, to comply with standards. The DS10 surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+Neutral AC networks.They are sometimes associated with dedicated N/PE surge protector based on gas tube technology.
Select another reference:
SPD type
IEC

2 (or 3)
Network

230/400 V
Nominal line voltage
 Un

230 Vac
Max. AC operating voltage
Uc

255 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT

335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT

440 Vac disconnection
Residual Current
Leakage current to Ground
 Ipe

< 0.5 mA
Operating current
Continious current at Uc
 Ic

0.5 mA
Follow current
If

None
Nominal discharge current
15 x 8/20 µs impulses
 In

5 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax

10 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total

10 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
 Uoc

10 kV
Withstand on overvoltages IEEE C62.41.1

10 kV
Connection mode(s)

L/N or N/PE
Protection mode(s)

Common Mode or Differential Mode
Protection level
@ In (8/20µs)
 Up

0.9 kV
Admissible short-circuit current
 Isccr

25 000 A
Technology

MOV
SPD configuration

Single phase
Connection to Network

By screw terminals: 2.5-25mm² / by bus
Format

Plug-in modular box
Mounting

Symmetrical rail 35 mm (EN 60715)
Housing material

Thermoplastic UL94 V-0
Operating temperature
 Tu

-40/+85°C
Protection rating

IP20
Failsafe mode

Disconnection from AC network
Disconnection indicator

1 mechanical indicator
Spare module(s)

DSM10-230
Remote signaling of disconnection

option DS11S-230 : output on changeover contact
Dimensions

See diagram
Standards compliance

IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification

UL Recognized
Thermal disconnector

Internal
Installation ground fault breaker

Type 'S' or delayed
Back-up protection device

20 A min. - 125 A max. - Fuses type gG
