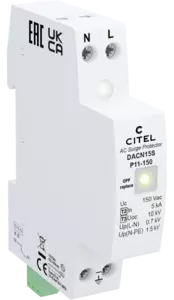

Compact single-phase type 2 (or 3) surge protector - Monobloc

DACN15S-P11-150
Part Number: 70146012
DACN15S-P11-150
  • Compact single-phase Type 2 (or 3) surge protector
  • In : 5 kA
  • Imax : 15 kA
  • Commun/Differential mode
  • Monobloc module
  • Remote signaling
  • EN 61643-11, IEC 61643-11 and UL1449 ed.5 compliance

The DACN15-P surge protections are usable for all single-phase AC applications. Type 2, these products maintain a Nominal discharge current (In) of 5 kA and a Maximum discharge current (Imax) of 15 kA. According to the IEC standards, a product with an In of 5 kA can be installed in the main panel, but it can also be placed in the secondary panel, downstreaming the primary SPD. The new product DACN15-P11-275/INV with an inverted base, allowing bottom cabling for special applications extending the series.


SPD type
2 (or 3)
Network
120/208 V
AC system
TT-TN
Max. AC operating voltage
Uc 150 Vac
Temporary Over Voltage (TOV) Charasteristics - 5 sec.
Without disconnection
UT 180 Vac withstand
Temporary Over Voltage (TOV) Charasteristics - 120 mn
Without disconnection or with safety disconnection
UT 230 Vac disconnection
Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
UT 1200 V/300A/200 ms withstand
Residual Current
Leakage current to Ground
Ipe None
Follow current
If None
Nominal discharge current
15 x 8/20 µs impulses
In 5 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax 15 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
Uoc 10 kV
Protection mode(s)
L/N and N/PE
Protection level L/N
@ In (8/20µs)
Up L/N 0.7 kV
Protection level N/PE
@ In (8/20µs)
Up N/PE 1.5 kV
Admissible short-circuit current
Isccr 10 000 A
Technology
MOV+GDT
SPD configuration
Single phase
Connection to Network
By screw terminals: 1.5-10mm²
Format
Monobloc modular box
Plugable
No
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu -40/+85°C
Protection rating
IP20
Failsafe mode
Disconnection from AC network
Disconnection indicator
Green LED OFF
Remote signaling of disconnection
output on changeover contact
Wiring for remote signaling
1.5 mm² max.
Max. Voltage/Current for remote signaling
250 V / 0.5 A (AC) / 30 V / 3 A (DC)
Dimensions
See diagram - 1TE (EN43880)
Weight
0.093 kg
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Back-up protection device
20 A min. - 125 A max. - Fuses type gG
