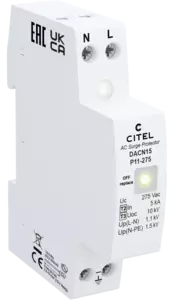

Compact single-phase type 2 (or 3) surge protector - Monobloc
Part Number: 70146021
DACN15-P11-275
- Compact single-phase Type 2 (or 3) surge protector
- In : 5 kA
- Imax : 15 kA
- Commun/Differential mode
- Monobloc module
- Remote signaling option
- EN 61643-11, IEC 61643-11 and UL1449 ed.5 compliance
Certificates
Datasheet
|
SPD type
|
IEC | 2+3 |
|
Network
|
230/400 V |
|
|
AC system
|
TT-TN |
|
|
Max. AC operating voltage
|
Uc | 275 Vac |
|
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
|
UT | 335 Vac withstand |
|
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
|
UT | 440 Vac disconnection |
|
Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
|
UT | 1200 V/300A/200 ms withstand |
|
Residual Current
Leakage current to Ground
|
Ipe | None |
|
Follow current
|
If | None |
|
Nominal discharge current
15 x 8/20 µs impulses
|
In | 5 kA |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 15 kA |
|
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
|
Uoc | 10 kV |
|
Protection mode(s)
|
L/N and N/PE |
|
|
Protection level L/N
@ In (8/20µs)
|
Up L/N | 1.1 kV |
|
Protection level N/PE
@ In (8/20µs)
|
Up N/PE | 1.5 kV |
|
Admissible short-circuit current
|
Isccr | 10 000 A |
|
Technology
|
MOV+GDT |
|
|
SPD configuration
|
Single phase |
|
|
Connection to Network
|
By screw terminals: 1.5-10mm² |
|
|
Format
|
Monobloc modular box |
|
|
Plugable
|
No |
|
|
Mounting
|
Symmetrical rail 35 mm (EN 60715) |
|
|
Housing material
|
Thermoplastic UL94 V-0 |
|
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP20 |
|
|
Failsafe mode
|
Disconnection from AC network |
|
|
Disconnection indicator
|
Green LED OFF |
|
|
Remote signaling of disconnection
|
Option DACN15S-P11-275: output on changeover contact |
|
|
Dimensions
|
See diagram - 1TE (EN43880) |
|
Standards compliance
|
IEC 61643-11 / EN 61643-11 / UL1449 ed.5 |
|
Thermal disconnector
|
Internal |
|
|
Installation ground fault breaker
|
Type 'S' or delayed |
|
|
Back-up protection device
|
20 A min. - 125 A max. - Fuses type gG |
