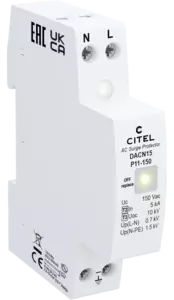

Compact single-phase type 2 (or 3) surge protector - Monobloc

DACN15-P11-150
Part Number 70146011
DACN15-P11-150
  • Compact single-phase Type 2 (or 3) surge protector
  • In : 5 kA
  • Imax : 15 kA
  • Commun/Differential mode
  • Monobloc module
  • Remote signaling option
  • EN 61643-11, IEC 61643-11 and UL1449 ed.5 compliance
Contact Us
Select another reference:
SPD type
IEC

2 (or 3)
Network

120/208 V
AC system

TT-TN
Max. AC operating voltage
Uc

150 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT

180 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT

230 Vac disconnection
Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
 UT

1200 V/300A/200 ms withstand
Residual Current
Leakage current to Ground
 Ipe

None
Follow current
If

None
Nominal discharge current
15 x 8/20 µs impulses
 In

5 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax

15 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
 Uoc

10 kV
Protection mode(s)

L/N and N/PE
Protection level L/N
@ In (8/20µs)
 Up L/N

0.7 kV
Protection level N/PE
@ In (8/20µs)
 Up N/PE

1.5 kV
Admissible short-circuit current
 Isccr

10 000 A
Technology

MOV+GDT
SPD configuration

Single phase
Connection to Network

By screw terminals: 1.5-10mm²
Format

Monobloc modular box
Plugable

No
Mounting

Symmetrical rail 35 mm (EN 60715)
Housing material

Thermoplastic UL94 V-0
Operating temperature
 Tu

-40/+85°C
Protection rating

IP20
Failsafe mode

Disconnection from AC network
Disconnection indicator

Green LED OFF
Remote signaling of disconnection

Option DACN15S-P11-150: output on changeover contact
Dimensions

See diagram - 1TE (EN43880)
Weight

0.090 kg
Standards compliance

IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Thermal disconnector

Internal
Installation ground fault breaker

Type 'S' or delayed
Back-up protection device

20 A min. - 125 A max. - Fuses type gG
