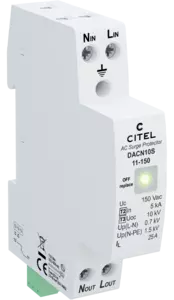

Compact single-phase type 2 (or 3) surge protector - Monobloc

DACN10S-11-150
DACN10S-11-150
Part Number: 70111012
  • Cost effective single-phase surge protector
  • Type 2 or 3 monobloc compact
  • In/Imax: 5 kA/10 kA
  • Max. load current: 25A
  • 2-port configuration (series mounting)
  • Remote signaling
  • EN 61643-11, IEC 61643-11, UL1449 ed.4 compliance

DACN10S AC surge protector is used for the 'secondary' protection of the single-phase networks against the surge voltages creating by lightning. DACN10S is equipped with an internal thermal safety which will disconnet the unit from the AC network in case of end of life. Regarding the failsafe mode this surge protector is equipped with the option of disconnection and AC line cut-off. This disconnection will be indicate by the turn on of the red led in the front. Very compact, the DACN10S surge protector must be installed close by the equipment to protect, downstream a 'primary' surge protector. DACN10S provides both a common and differential mode protection.


SPD type 2 (or 3)
Network 120 V single-phase
AC system TT-TN
Max. AC operating voltage Uc 150 Vac
Max. load current IL 25 A
Temporary Over Voltage (TOV) Charasteristics - 5 sec. UT 180 Vac withstand
Temporary Over Voltage (TOV) Charasteristics - 120 mn UT 230 Vac disconnection
Temporary Over Voltage N/PE (TOV HT) UT 1200 V/300A/200 ms breaker disconnection
Residual Current Ipe None
Nominal discharge current In 5 kA
Max. discharge current Imax 10 kA
Total Maximum discharge current Imax Total 20 kA
Withstand on Combination waveform IEC 61643-11 Uoc 10 kV
Protection level L/N Up L/N 0.7 kV
Protection level N/PE Up N/PE 1.5 kV
Admissible short-circuit current Isccr 10 000 A
SPD configuration Single phase
Connection to Network by screw terminals: 1.5-10mm²
Plugable No
Mounting Symmetrical rail 35 mm (EN 60715)
Housing material Thermoplastic UL94 V-0
Operating temperature Tu -40/+85°C
Protection rating IP20
Outdoor application No
Failsafe mode Disconnection SPD
Disconnection indicator Green led OFF
Remote signaling of disconnection output on NC contact
Wiring for remote signaling 1.5 mm² max.
Max. Voltage/Current for remote signaling 250 V / 0.5 A (AC) / 30 V / 2 A (DC)
Dimensions See diagram - 1TE (EN43880)
Weight 0.092 kg
Standards compliance IEC 61643-11 / EN 61643-11 / UL1449 ed.4
Thermal disconnector Internal
Installation ground fault breaker Type 'S' or delayed
Fuses Fuses type gG - 25A
