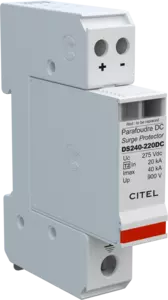

DC power surge protector - 220 Vdc
DS240-220DC
Part Number: 310201
- DC or PV power surge protector
- 220 Vdc
- Compact design
- Imax: 40 kA
- Pluggable module
- Remote signaling (option)
- Very low Up protection level
DatasheetDS210-DC surge protectors are designed to protect equipment connected to DC (and AC) power supplies from lightning surges. It is based on varistors matched to the network voltage: the varistors have thermal disconnection devices to control any end-of-life. These SPD are DIN rail compatible and is connected in parallel on the line to be protected.
Select another reference:
| SPD type following IEC test |
2 |
| Network |
DC or PV network 220Vdc |
| Nominal DC voltage |
220 Vdc |
| Nominal PV voltage |
220 Vdc |
| Max. AC operating voltage L-N | 210 Vac |
| Max. PV operating voltage |
275 Vdc |
| Max. DC operating voltage | 275 Vdc |
| Max. load current |
20 A |
| Residual Current Leakage current to Ground |
< 0.1 mA |
| Operating current Continious current at Uc |
< 0.1 mA |
| PV Permanent Operating current Current consumption at Ucpv |
< 0.1 mA |
| Follow current |
None |
| Nominal discharge current 15 x 8/20 µs impulses |
20 kA |
| Max. discharge current max. withstand @ 8/20 µs by pole |
40 kA |
| Total Maximal discharge current max. total withstand @ 8/20 µs |
80 kA |
| Current withstand short circuit PV |
1000 A |
| Connection mode(s) |
+/-/PE |
| Protection mode(s) |
Common mode |
| Protection level @ In (8/20µs) |
900 V |
| Protection level L/PE @ In (8/20µs) |
900 V |
| Residual Voltage at 3 kA @ 8/20µs |
690 V |
| Technology | MOV |
| SPD configuration | 2 poles |
| Connection to Network | By screw terminals: 1.5-10mm² (actives wires) and 2.5-25mm² (ground) |
| Format | Plug-in modular box |
| Mounting | Symmetrical rail 35 mm (EN60715) |
| Housing material | Thermoplastic UL94-V0 |
| Operating temperature | -40/+85°C |
| Protection rating | IP20 |
| Outdoor application |
False |
| Failsafe behavior | disconnection from DC line |
| Disconnection indicator | 2 mechanical indicators |
| Spare module(s) |
DSM240-220DC |
| Remote signaling of disconnection | Option DS240S-220DC : output on changeover contact |
| Dimensions |
See diagram |
| Standards compliance | IEC 61643-11 / EN 61643-11 / UL1449 ed.4 / EN 50539-11 |
| Certification | EAC |
| Thermal disconnector | internal |
| Fuses |
Fuses type gG - 50 A |
