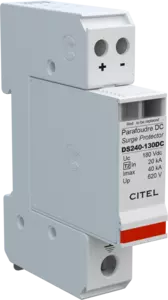

DC power surge protector - 130 Vdc

DS240-130DC
Part Number 310801
DS240-130DC
  • Discover our latest innovation : the DDC40C-20-180
  • DC or PV power surge protector
  • 130 Vdc
  • Compact design
  • Imax: 40 kA
  • Pluggable module
  • Remote signaling (option)
  • Very low Up protection level

DS210-DC surge protectors are designed to protect equipment connected to DC (and AC) power supplies from lightning surges. It is based on varistors matched to the network voltage: the varistors have thermal disconnection devices to control any end-of-life. These SPD are DIN rail compatible and is connected in parallel on the line to be protected.

Select another reference:

SPD type
IEC

2

Network

DC or PV network 130Vdc

Nominal DC voltage
Un-dc

130 Vdc

Nominal PV voltage
Uocstc

130 Vdc

Max. AC operating voltage
Uc

150 Vac

Max. PV operating voltage
Ucpv

180 Vdc

Max. DC operating voltage
Uc

180 Vdc

Max. load current @25°C
IL

50 A

Residual Current
Leakage current to Ground
Ipe

< 0.2 mA

Operating current
Continious current at Uc
Ic

< 0.1 mA

PV Permanent Operating current
Current consumption at Ucpv
Icpv

< 0.1 mA

Follow current
If

None

Nominal discharge current
15 x 8/20 µs impulses
In

20 kA

Max. discharge current
max. withstand @ 8/20 µs by pole
Imax

40 kA

Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total

80 kA

Current withstand short circuit PV
Iscpv

1000 A

Connection mode(s)

+/-/PE

Protection mode(s)

Common mode

Protection level +/PE (-/PE)
@ In (8/20µs)
Up

620 V

Technology

MOV

SPD configuration

2-poles

Connection to Network

By screw terminals: 1.5-10mm² (actives wires) and 2.5-25mm² (ground)

Format

Plug-in modular box

Mounting

Symmetrical rail 35 mm (EN 60715)

Housing material

Thermoplastic UL94 V-0

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Outdoor application

No

Failsafe mode

Disconnection from DC network

Disconnection indicator

2 mechanical indicators

Spare module(s)

DSM240-130DC

Remote signaling of disconnection

Option DS240S-130DC : output on changeover contact

Dimensions

See diagram

Weight

0.119 kg

Standards compliance

IEC 61643-11 / EN 61643-11 / UL1449 ed.5

Certification

UL

Thermal disconnector

Internal

Back-up protection device

Fuses type gG - 20A
