Type 2 AC surge protector - 3-phase

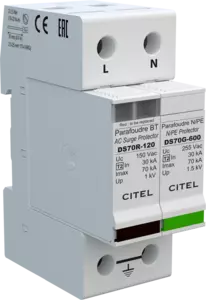

DS72R-120/G
Part Number 491611
DS72R-120/G
  • Discover our latest innovation : the DAC80-11-150
  • Re-inforced Type 2 AC surge protector
  • In : 30 kA
  • Imax : 70 kA
  • Pluggable module by phase
  • Remote signaling option
  • IEC 61643-11, EN 61643-11 and UL1449 ed.5 compliance

DS70R type 2 AC surge protector are used mainly for primary protection of single and three-phase networks at the main electrical panel. They provide common-mode protection and are available in one-phase, single-phase, 3-phase and 3-phase+Neutral. This SPD is based on association of high energy varistors equipped with thermal disconnector and failure indicator, to comply with standards. The DS70R surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+N AC networks. Each pole of the SPD is connected between Line(s) and PE and Neutral and PE.

Select another reference:

SPD type
IEC

2

Network

120 V single-phase

AC system

TT

Nominal line voltage
Un

120 Vac

Max. AC operating voltage
Uc

150 Vac

Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT

180 Vac withstand

Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT

230 Vac disconnection

Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
UT

1200 V/300A/200 ms withstand

Residual Current
Leakage current to Ground
Ipe

None

Operating current
Continious current at Uc
Ic

< 1 mA

Follow current
If

None

Nominal discharge current
15 x 8/20 µs impulses
In

30 kA

Max. discharge current
max. withstand @ 8/20 µs by pole
Imax

70 kA

Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total

70 kA

Connection mode(s)

L/N and N/PE

Protection mode(s)

Common/Differential mode

Residual voltage at 5 kA
@ 5 kA (8/20µs)
Up-5kA

0.6 kV

Protection level L/N
@ In (8/20µs)
Up L/N

1 kV

Protection level N/PE
@ In (8/20µs)
Up N/PE

1.5 kV

Residual voltage at 10 kA
@ 8/20µs
Up-10kA

0.7 kV

Admissible short-circuit current
Isccr

25 000 A

Technology

MOV

SPD configuration

Single phase

Connection to Network

By screw terminals: 2.5-25mm² / by bus

Format

Plug-in modular box

Mounting

Symmetrical rail 35 mm (EN 60715)

Housing material

Thermoplastic UL94 V-0

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Failsafe mode

Disconnection from AC network

Disconnection indicator

2 mechanical indicators by pole

Spare module(s)

DSM70R-120 + DSM70G-600

Remote signaling of disconnection

option DS72RS-120/G : output on changeover contact

Dimensions

See diagram

Standards compliance

IEC 61643-11 / EN 61643-11 / UL1449 ed.5

Certification

UL Recognized

Thermal disconnector

Internal

Installation ground fault breaker

Type 'S' or delayed

Back-up protection device

100 A min. - 125 A max. - Fuses type gG
