Type 2 AC surge protector
DS72R-120

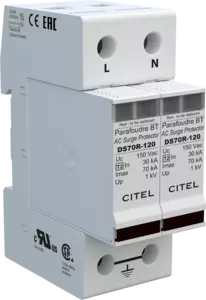

Type 2 AC surge protector - Single-phase
DS72R-120
Part Number
491601
Re-inforced Type 2 AC Multipolar surge protector
In: 30 kA
Imax total: 140 kA
Pluggable module by phase
Remote signaling option
IEC 61643-11, EN 61643-11 compliance
UL1449 ed.5 approved
Datasheet
Installation Sheet
Tender specifications
Contact Us
DS70R type 2 AC surge protector are used mainly for primary protection of single and three-phase networks at the main electrical panel. They provide common-mode protection and are available in one-phase, single-phase, 3-phase and 3-phase+Neutral. This SPD is based on association of high energy varistors equipped with thermal disconnector and failure indicator, to comply with standards. The DS70R surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+N AC networks. Each pole of the SPD is connected between Line(s) and PE and Neutral and PE.
Select another reference:
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
2
Network
120 V single-phase
AC system
TN
Nominal line voltage
Un
120 Vac
Max. AC operating voltage
Uc
150 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT
180 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT
230 Vac disconnection
Residual Current
Leakage current to Ground
Ipe
< 2 mA
Operating current
Continious current at Uc
Ic
< 1 mA
Follow current
If
None
Nominal discharge current
15 x 8/20 µs impulses
In
30 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax
70 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total
140 kA
Connection mode(s)
L/PE and N/PE
Protection mode(s)
Common mode
Protection level N/PE
@ In (8/20µs)
Up N/PE
1 kV
Protection level L/PE
@ In (8/20µs)
Up L/PE
1.8 kV
Protection level N/PE at 5 kA
@ 5 kA (8/20µs)
Up-5kA
0.6 kV
Residual voltage L/PE at 5 kA
@ 5 kA (8/20µs)
Up-5kA
0.6 kV
Residual voltage at 10 kA
@ 8/20µs
Up-10kA
0.7 kV
Admissible short-circuit current
Isccr
25 000 A
Technology
MOV
SPD configuration
Single phase
Connection to Network
By screw terminals: 2.5-25mm² / by bus
Format
Plug-in modular box
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Failsafe mode
Disconnection from AC network
Disconnection indicator
2 mechanical indicators by pole
Spare module(s)
DSM70R-120
Remote signaling of disconnection
option DS72RS-120 : output on changeover contact
Dimensions
See diagram
Weight
0.242 kg
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
CSA / UL
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Back-up protection device
100 A min. - 125 A max. - Fuses type gG
×
Description:
Type 2 AC surge protector - Single-phase
Standards compliance:
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification:
CSA / EAC / UL
Technology:
MOV
SPD configuration:
Single phase
Remote signaling of disconnection:
option DS72RS-120 : output on changeover contact
SPD type :
2
Network:
120 V single-phase
AC system:
TN
Max. AC operating voltage :
150 Vac
Residual Current :
< 2 mA
Max. discharge current :
70 kA
Total Maximum discharge current :
140 kA
Admissible short-circuit current:
25 000 A
