Type 2 AC surge protector - 3-phase+N

DS44-690
Part Number: 461802
DS44-690
  • Type 2 AC Multipolar surge protector
  • In : 20 kA
  • Imax total : 40 kA
  • Pluggable module for each phase
  • Remote signaling option
  • EN 61643-11, IEC 61643-11 compliance
  • UL1449 ed.5
Contact Us
used mainly for primary protection of single and 3- phase networks at the main electrical panel. They provide common-mode or common and differential mode. This SPD is based on high energy varistor equipped with thermal disconnector and failure indicator, to comply with standards. The DS40 surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+Neutral AC networks.They are sometimes associated with dedicated N/PE surge protector based on gas tube technology.
Select another reference:
SPD type
2
Max. AC operating voltage
Uc 760 Vac
Temporary Over Voltage (TOV) Charasteristics - 5 sec.
Without disconnection
 UT 1000 Vac withstand
Temporary Over Voltage (TOV) Charasteristics - 120 mn
Without disconnection or with safety disconnection
 UT 1325 Vac disconnection
Residual Current
Leakage current to Ground
 Ipe < 1 mA
Follow current
If None
Nominal discharge current
15 x 8/20 µs impulses
 In 20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 40 kA
Protection level N/PE
@ In (8/20µs)
 Up N/PE 3.5 kV
Protection level L/PE
@ In (8/20µs)
 Up L/PE 3.5 kV
Protection level N/PE at 5 kA
@ 5 kA (8/20µs)
 Up-5kA 2.6 kV
Residual voltage L/PE at 5 kA
@ 5 kA (8/20µs)
 Up-5kA 2.6 kV
Admissible short-circuit current
 Isccr 25 000 A
Technology
 MOV
SPD configuration
 3-phase+Neutral
Connection to Network
 By screw terminals: 2.5-25mm² / by bus
Format
 Plug-in modular box
Mounting
 Symmetrical rail 35 mm (EN 60715)
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Failsafe mode
 Disconnection from AC network
Disconnection indicator
 1 mechanical indicator by pole
Spare module(s)
 DSM40-690
Remote signaling of disconnection
 option DS44S-690: output on changeover contact

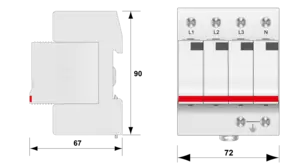

Dimensions
 See diagram
Weight
 0.43 kg
Standards compliance
 IEC 61643-11 / EN 61643-11
Certification
 UL
Thermal disconnector
 Internal
Installation ground fault breaker
 Type 'S' or delayed
Back-up protection device
Fuses type gG - 50 A
