Compact 1-phase Type 2 (or 3) surge protector - 230 V -Pluggable
DS240-400/G
DS240-400/G

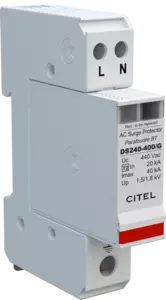

Part Number: 311421
  • Compact single-phase Type 2 surge protector
  • In : 20 kA
  • Imax : 40 kA
  • Common/Differential mode
  • Pluggable module
  • Remote signaling option
  • EN 61643-11, CEI 61643-11 compliance
  • UL1449 ed.5
Installation Sheet

The DS240 Type 2 surge protectors are compact devices designed to protect single phase networks at the main switchboard. They provide a common or common/differential mode protection. This SPD is based on high energy varistor equipped with thermal disconnectors and failure indicator to comply with standards. The DS240 is DIN rail compatible and is built with a plug-in module and fixed base, which allows an easy and fast maintenance.


SPD type 2
Network 230 V single-phase
AC system TT-TN
Nominal line voltage Un 400 Vac
Max. AC operating voltage L-N Uc 440 Vac
Max. load current IL 20 A
Temporary Over Voltage (TOV) Charasteristics - 5 sec. UT 335 Vac withstand
Temporary Over Voltage (TOV) Charasteristics - 120 mn UT 440 Vac withstand
Temporary Over Voltage N/PE (TOV HT) UT 1200 V/300A/200 ms withstand
Residual Current Ipe None
Operating current Ic 0.5 mA
Follow current If None
Nominal discharge current In 20 kA
Max. discharge current Imax 40 kA
Total Maximal discharge current Imax Total 40 kA
Connection mode(s) L/N and N/PE
Protection mode(s) Common/Differential mode
Residuel voltage at 5 kA Up-5kA 1.5/1.3 kV
Protection level L/N Up L/N 1.8 kV
Protection level CM/DM Up mc/md 1.5/1.8 kV
Admissible short-circuit current Isccr 10 000 A
Technology MOV
SPD configuration Single phase
Connection to Network by screw terminals: 1.5-10mm² (L/N) or 2.5-25mm² (PE)
Format Plug-in modular box
Mounting Symmetrical rail 35 mm (EN60715)
Housing material Thermoplastic UL94-V0
Operating temperature -40/+85°C
Protection rating IP20
Failsafe mode Disconnection
Disconnection indicator 1 mechanical indicator
Spare module(s) DSM240-400/G
Remote signaling of disconnection Option DS240S-400/G : output on changeover contact
Dimensions See diagram
Standards compliance IEC 61643-11 / EN 61643-11 / UL1449 4ed.
Certification UL / CSA /EAC
