Compact 1-phase Type 2 (or 3) surge protector - 230 V - Pluggable

DS240-400
Part Number 311401
DS240-400
  • Discover our latest innovation : the DAC40C-20-440
  • Compact single-phase Type 2 surge protector
  • In : 20 kA
  • Imax : 40 kA
  • Common mode
  • Pluggable module
  • Remote signaling option
  • EN 61643-11, IEC 61643-11 compliance
  • UL1449 ed.5
Contact Us

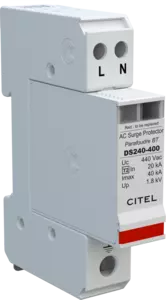

The DS240 Type 2 surge protectors are compact devices designed to protect single phase networks at the main switchboard. They provide a common or common/differential mode protection. This SPD is based on high energy varistor equipped with thermal disconnectors and failure indicator to comply with standards. The DS240 is DIN rail compatible and is built with a plug-in module and fixed base, which allows an easy and fast maintenance.
Select another reference:
SPD type
IEC

2
Network

230 V single-phase
AC system

IT
Nominal line voltage
 Un

400 Vac
Max. AC operating voltage
Uc

440 Vac
Max. load current
if series connection
 IL

20 A
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT

580 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT

770 Vac disconnection
Residual Current
Leakage current to Ground
 Ipe

< 0.5 mA
Operating current
Continious current at Uc
 Ic

0.5 mA
Follow current
If

None
Nominal discharge current
15 x 8/20 µs impulses
 In

20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax

40 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total

80 kA
Protection mode(s)

Common mode
Residual voltage at 5 kA
@ 5 kA (8/20µs)
 Up-5kA

1.3 kV
Protection level CM/DM
@ In (8/20µs)
Up mc/md

1.8 kV
Admissible short-circuit current
 Isccr

10 000 A
Technology

MOV
SPD configuration

Single phase
Connection to Network

By screw terminals: 1.5-10mm² (L/N) or 2.5-25mm² (PE)
Format

Plug-in modular box
Mounting

Symmetrical rail 35 mm (EN 60715)
Housing material

Thermoplastic UL94 V-0
Operating temperature
 Tu

-40/+85°C
Protection rating

IP20
Failsafe mode

Disconnection from AC network
Disconnection indicator

2 mechanical indicators
Spare module(s)

DSM240-400
Remote signaling of disconnection

Option DS240S-400 : output on changeover contact
Dimensions

See diagram
Weight

0.143 kg
Standards compliance

IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification

CSA / UL
Thermal disconnector

Internal
Installation ground fault breaker

Type 'S' or delayed
Back-up protection device

50 A min. - 125 A max. - Fuses Type gG
