Type 2 AC surge protector - Single-phase

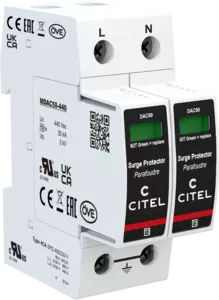

DAC50-20-440
Part Number 821110412
DAC50-20-440
  • Type 2 AC multipolar surge protector
  • In: 20 kA
  • Imax: 50 kA
  • Pluggable module for each phase
  • Remote signaling option
  • EN 61643-11, IEC 61643-11 certified
Contact Us
The pluggable surge protectors Type 2 DAC50, are designed to protect AC powerline at the main switchboard of the installation. These SPDs are based on high energy varistor equipped with thermal disconnector and failure indicator, to comply with standards and to provide a maximum protection efficiency, a high impulse current capability and an improved reliability. The surge protectors DAC50 are available in multipolar version and in several voltages to protect single or 3-phase networks.
Select another reference:
SPD type
IEC

2
Network

230 V single-phase
AC system

IT
Max. AC operating voltage
Uc

440 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT

580 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT

770 Vac disconnection
Residual Current
Leakage current to Ground
 Ipe

< 1 mA
Follow current
If

None
Nominal discharge current
15 x 8/20 µs impulses
 In

20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax

50 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total

100 kA
Protection mode(s)

L/PE and N/PE
Protection level N/PE
@ In (8/20µs)
 Up N/PE

2 kV
Protection level L/PE
@ In (8/20µs)
 Up L/PE

2 kV
Protection level N/PE at 5 kA
@ 5 kA (8/20µs)
 Up-5kA

1.5 kV
Residual voltage L/PE at 5 kA
@ 5 kA (8/20µs)
 Up-5kA

1.5 kV
Admissible short-circuit current
 Isccr

50 000 A
Network type

AC
Technology

MOV
SPD configuration

Single phase
Connection to Network

By screw terminals: 2.5-25mm² (35mm² rigid)
Format

Plug-in modular box
Plugable

Yes
Mounting

Symmetrical rail 35 mm (EN 60715)
Housing material

Thermoplastic UL94 V-0
Operating temperature
 Tu

-40/+85°C
Protection rating

IP20
Failsafe mode

Disconnection from AC network
Disconnection indicator

1 mechanical indicator by pole - Red/Green
Spare module(s)

MDAC50-440
Remote signaling of disconnection

option DAC50S-20-440 : output on changeover contact
Dimensions

See diagram - 2TE (EN43880)
Standards compliance

IEC 61643-11 / EN 61643-11
Certification

OVE / UL
Thermal disconnector

Internal
Installation ground fault breaker

Type 'S' or delayed
Back-up protection device

50 A min. - 125 A max. - Fuses Type gG
