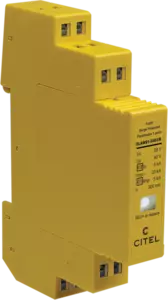

1-pair DIN rail plug-in Data surge protector

DLAWS1-24D3/R
Part Number 6419034
DLAWS1-24D3/R
  • 1-pair Surge protection
  • Pluggable protection module
  • Optical fault indication
  • Indirect shield connection
  • Visual indicator in failsafe behaviour
  • Indirect earthing
  • Current circuit disconnection when module is unplugged
  • Conforms to IEC 61643-21, VDE 0845-3-1 and UL497B
Contact Us
The surge protection devices of the DLAWS1 series protect I&C, telecommunication and data technology systems against lightning effects and overvoltages. These surge protectors were developed for the protection of one twin wire and can be used for all applications with voltages from 6 V to max. 48 V and transmission rates of up to 10 Mbps. The electrical circuitry of the DLAS consists of a combination of high-performance gas discharge tubes and fast-switching diodes for high discharge capacity and fast response. The shield connection is additionally earthed via a gas discharge tube. Earthing is simply done via the top-hat rail. When the plug-in module is disconnected, the transmission signal is interrupted. Error signalling is via an optical display.
Network
 RNIS-T0, 48 V line
Nominal line voltage
 Un 24 V
Max. DC operating voltage
 Uc 28 Vdc
Max. frequency
 f max. > 3 MHz
Insertion loss
 < 1 dB
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 20 kA
Line inductance
 No
Protection mode(s)
 Common mode
Protection level
@ In (8/20 µs)
 Up L/L 40 V
Impulse current
2 x 10/350µs Test - D1 Category
 Iimp 5 kA
Nominal discharge current
C2 Category
 In 5 kA
Line/Line Nominal discharge current
C2 Category
In L/L 5 kA
Nominal Discharge Current, X-C (Line/Earth)
8/20µs Test x 10 - C2 Category
 In L/PE 5 kA
Line resistance
 < 4.7 Ohm
Network type
 Data Communication
Disconnection
 Specific version with line cut-off in case of removal plug-in module
Technology
 GDT+Clamping diode+PTC (thermal resistor) + Resistor
SPD configuration
 1-pair+shielded
Connection to Network
 By spring contact terminal
Format
 Plug-in DIN box
Mounting
 Symmetrical rail 35 mm (EN 60715)
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Failsafe mode
 Opening line - transmision cut-off - fault mode 2
With line cut-off in case of removal plug-in module
 Yes
Disconnection indicator
 Red light on
Spare module(s)
 DLAWS1M-24D3
Dimensions
 See diagram
Standards compliance
 IEC 61643-21 / EN 61643-21 / UL497A
