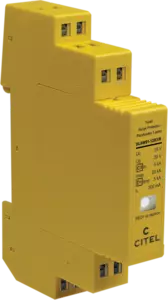

1-pair DIN rail plug-in Data surge protector

DLAWS1-12D3/R
Part Number 6419024
DLAWS1-12D3/R
  • 1-pair Surge protection
  • Pluggable protection module
  • Optical fault indication
  • Indirect shield connection
  • Visual indicator in failsafe behaviour
  • Indirect earthing
  • Current circuit disconnection when module is unplugged
  • Conforms to IEC 61643-21, VDE 0845-3-1 and UL497B
Contact Us
The surge protection devices of the DLAWS1 series protect I&C, telecommunication and data technology systems against lightning effects and overvoltages. These surge protectors were developed for the protection of one twin wire and can be used for all applications with voltages from 6 V to max. 48 V and transmission rates of up to 10 Mbps. The electrical circuitry of the DLAS consists of a combination of high-performance gas discharge tubes and fast-switching diodes for high discharge capacity and fast response. The shield connection is additionally earthed via a gas discharge tube. Earthing is simply done via the top-hat rail. When the plug-in module is disconnected, the transmission signal is interrupted. Error signalling is via an optical display.
Network

RS232 - RS485
Nominal line voltage
 Un

24 V
Nominal line voltage
 Un

12 V
Max. DC operating voltage
 Uc

15 Vdc
Max. frequency
 f max.

3 MHz
Insertion loss

< 1 dB
Max. load current @25°C
 IL

300 mA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax

20 kA
Protection mode(s)

Common/Differential mode
Protection Level
C3 (10/1000μs), 300 applications@10 A, X-X (Line/Line)
 Up

30 V
Protection level
C3 (10/1000μs), 300 applications@10 A, X-C (Line/Earth)
 Up

30 V
Impulse current
2 x 10/350µs Test - D1 Category
 Iimp

5 kA
Nominal discharge current
C2 Category
 In

5 kA
Line/Line Nominal discharge current
C2 Category
In L/L

5 kA
Nominal Discharge Current, X-C (Line/Earth)
8/20µs Test x 10 - C2 Category
 In L/PE

5 kA
Line resistance (± 10%)

4.7 Ohm
Network type

Data Communication
Disconnection

Specific version with line cut-off in case of removal plug-in module
Technology

GDT+Clamping diode+PTC (thermal resistor) + Resistor
SPD configuration

1-pair+shielded
Connection to Network

By spring contact terminal
Format

Plug-in DIN box
Mounting

Symmetrical rail 35 mm (EN 60715)
Housing material

Thermoplastic UL94 V-0
Operating temperature
 Tu

-40/+85°C
Protection rating

IP20
Failsafe mode

Opening line - transmision cut-off - fault mode 2
With line cut-off in case of removal plug-in module

Yes
Disconnection indicator

Red light on
Spare module(s)

DLAWS1M-12D3
Dimensions

See diagram
Standards compliance

IEC 61643-21 / EN 61643-21 / UL497B
