Type 2 PV surge protector

Part Number: 48031110
DS50PVS-1000/30
DS50PVS-1000/30
DS50PVS-1000/30
DS50PVS-1000/30
DS50PVS-1000/30
  • Type 2 surge protector for PV
  • In: 20kA / Imax: 40kA
  • Pluggable
  • Remote signaling
  • UL 1449 ed.5 compliance
  • IEC 61643-31, EN 61643-31, EN 50539-11 certified
DS50PV(S)-1000/30 are type 2 surge protectors are designed to protect against lightning surge voltages in photovoltaic power supply network. Based on the use of specific varistors, providing a protection in common mode or common and differential mode.
Select another reference:
DS50PVS-1000/30

SPD type
IEC

2
Network

PV network 1000 Vdc
Nominal PV voltage
 Uocstc

1000 Vdc
Max. PV operating voltage
 Ucpv

1300 Vdc
Residual Current
Leakage current to Ground
 Ipe

< 0.2 mA
PV Permanent Operating current
Current consumption at Ucpv
 Icpv

< 0.1 mA
Follow current
If

None
Nominal discharge current
15 x 8/20 µs impulses
 In

20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax

40 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total

60 kA
Current withstand short circuit PV
 Iscpv

15 000 A

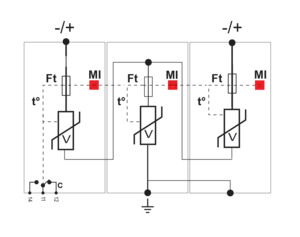

Connection mode(s)

+/-/PE
Protection level
@ In (8/20µs)
 Up

4.0 kV

Technology

MOV
Connection to Network

By screw terminals: 2.5-25mm²
Operating temperature
 Tu

-40/+85°C
Protection rating

IP20
Failsafe mode

Disconnection SPD of the PV line
Disconnection indicator

3 mechanical indicators
Remote signaling of disconnection

Output on changeover contact
Dimensions

See diagram

Standards compliance

IEC 61643-31 / EN 61643-31 / EN 50539-11 / UL1449 ed.5
Certification

TUV Süd

Thermal disconnector

Internal
Back-up protection device

Without
