Type 2 PV surge protector

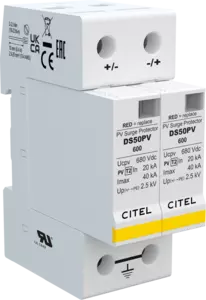

DS50PV-600
Type 2 PV surge protector
DS50PV-600
Part Number
480401
Type 2 surge protector for PV
In : 20kA / Imax : 40kA
Pluggable
Remote signaling (option)
Certified UL1449 ed.5
Compliance EN 50539-11 / IEC 61643-31 / EN 61643-31
Datasheet
Citel_Certif_UL_DS50PV-600.pdf
Installation Sheet
Tender specifications
Contact Us
DS50PV are type 2 surge protectors are designed to protect against lightning surge voltages in photovoltaic power supply network. Based on the use of specific varistors, providing a protection in common mode or common and differential mode.
Select another reference:
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
2
Nominal PV voltage
Uocstc
600 Vdc
Max. PV operating voltage
Ucpv
680 Vdc
Residual Current
Leakage current to Ground
Ipe
None
PV Permanent Operating current
Current consumption at Ucpv
Icpv
< 1 mA
Follow current
If
None
Nominal discharge current
15 x 8/20 µs impulses
In
20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax
40 kA
Current withstand short circuit PV
Iscpv
1000 A
Protection mode(s)
Common mode
Protection level +/-
@ In (8/20µs)
Up
5.1 kV
Protection level +/PE (-/PE)
@ In (8/20µs)
Up
2.5 kV
Connection to Network
By screw terminals: 4-25mm² / by bus
Plugable
Yes
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Disconnection indicator
1 mechanical indicator by pole - Red/Green
Remote signaling of disconnection
Option DS50PVS-600 - output on changeover contact
Dimensions
See diagram
Weight
0.216 kg
Standards compliance
IEC 61643-31 / EN 61643-31 / EN 50539-11 / UL1449 ed.5
Certification
UL
Thermal disconnector
Internal
×
Description:
Type 2 PV surge protector
Standards compliance:
IEC 61643-31 / EN 61643-31 / EN 50539-11 / UL1449 ed.5
Certification:
UL / EAC
Remote signaling of disconnection:
Option DS50PVS-600 - output on changeover contact
SPD type :
2
Max. PV operating voltage:
680 Vdc
Residual Current :
None
Max. discharge current :
40 kA
CITEL
Reference:
DS50PV-600
Part Number:
480401
Or equivalent
