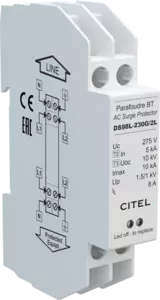

Compact single-phase type 2 (or 3) surge protector - Monobloc

DS98L-230G/2L
Part Number 351933
DS98L-230G/2L
  • Cost effective single-phase surge protector
  • Safety disconnection in-line
  • Double connection in series
  • Common/Differential mode

DS98L AC surge protector is used for the 'secondary' protection of the single-phase networks against the surge voltages creating by lightning. DS98 is equipped with in-line safety disconnectin and double output connection. The disconnection will be indicate by the turn on of the red led in the front. Very compact, the DS98L surge protector must be installed close by the equipment to protect, downstream a 'primary' surge protector. DS98L provides both a common and differential mode protection.

Select another reference:

SPD type
IEC

2 (or 3)

Network

2-phase + N 230 V

AC system

TT-TN

Nominal line voltage
Un

230 Vac

Max. AC operating voltage
Uc

275 Vac

Max. load current @25°C
IL

8 A

Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT

335 Vac withstand

Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT

440 Vac disconnection

Operating current
Continious current at Uc
Ic

None

Follow current
If

None

Nominal discharge current
15 x 8/20 µs impulses
In

5 kA

Max. discharge current
max. withstand @ 8/20 µs by pole
Imax

10 kA

Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
Uoc

10 kV

Withstand on overvoltages IEEE C62.41.1

10 kV

Connection mode(s)

L/N/PE

Protection mode(s)

Common/Differential mode

Protection level L/N
@ In (8/20µs)
Up L/N

1 kV

Protection level N/PE
@ In (8/20µs)
Up N/PE

1.5 kV

Admissible short-circuit current
Isccr

10 000 A

SPD configuration

2-phase+N

Connection to Network

By screw terminals: 2.5mm² max.

Format

Monobloc modular box

Mounting

Symmetrical rail 35 mm (EN 60715)

Housing material

Thermoplastic UL94 V-0

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Outdoor application

No

Failsafe mode

Disconnection from AC network

Disconnection indicator

Green LED OFF

Remote signaling of disconnection

No

Dimensions

See diagram

Weight

0.069 kg

Standards compliance

IEC 61643-11 / EN 61643-11 / UL1449 ed.5

Certification
Thermal disconnector

Internal

Installation ground fault breaker

Type 'S' or delayed

Back-up protection device

Fuse type gG - 16 A
