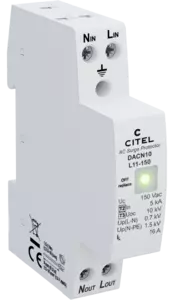

Compact single-phase type 2 (or 3) surge protector - Monobloc

DACN10-L11-150
Part Number 70112011
DACN10-L11-150
  • Cost effective single-phase surge protector
  • Type 2+3 monobloc compact
  • In/Imax: 5 kA/10 kA
  • Max. load current: 16A
  • Disconnection + AC line cut
  • 2-port configuration (series mounting)
  • Remote signaling (option)
  • EN 61643-11, IEC 61643-11 compliance

The DACN10-L AC Type 2/3 surge protector is used for the 'secondary' protection of a single-phase network against surge voltages induced by lightning. Unlike the DACN10, the DACN10-L incorporates an in-line safety disconnection which will handle a 16A load. The DACN10-L provides common and differential mode protection and features an LED colour change from green to red at end of life. The DACN10-L surge protector is a single module DINRail mounted device designed to be installed close to the equipment being protected; it will normally be connected ‘downstream’ of a Type 1/2 'primary' surge protector.

Select another reference:

SPD type
2+3
Network
230 V single-phase
AC system
TT-TN
Max. AC operating voltage
Uc 150 Vac
Max. load current
IL 16 A
Temporary Over Voltage (TOV) Charasteristics - 5 sec.
Without disconnection
UT 180 Vac withstand
Temporary Over Voltage (TOV) Charasteristics - 120 mn
Without disconnection or with safety disconnection
UT 230 Vac disconnection
Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
UT 1200 V/300A/200 ms breaker disconnection
Residual Current
Leakage current to Ground
Ipe None
Nominal discharge current
15 x 8/20 µs impulses
In 5 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax 10 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
Uoc 10 kV
Protection level L/N
@ In (8/20µs)
Up L/N 0.7 kV
Protection level N/PE
@ In (8/20µs)
Up N/PE 1.5 kV
Admissible short-circuit current
Isccr 10 000 A
SPD configuration
Single phase
Connection to Network
By screw terminals: 1.5-10mm²
Plugable
No
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu -40/+85°C
Protection rating
IP20
Outdoor application
No
Failsafe mode
Disconnection and AC line cut-off
Disconnection indicator
Green LED OFF
Remote signaling of disconnection
option DACN10S-L11-150
Dimensions
See diagram - 1TE (EN43880)
Weight
0.090 kg
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Back-up protection device
Fuses type gG - 25A
